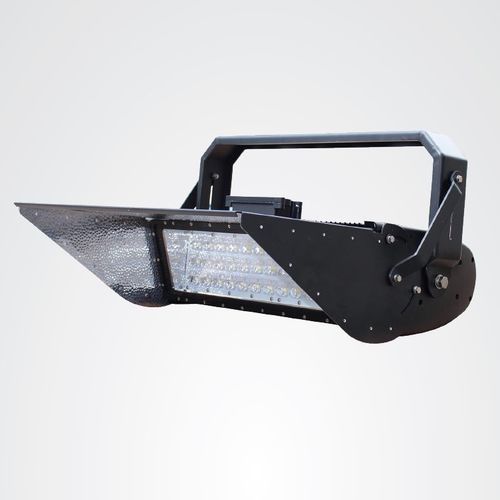

LED floodlight JNHM2-2450S-5700-A4-DIM

IP65IK 08shock resistant

Short description
Powerful 2450 W LED high-mast floodlight JNHM2-2450S-5700-A4-DIM equipped with Philips Lumileds and Meanwell HLG-1000H drivers. Dimmable via 0-10V control. IP65-rated for outdoor installations and IK08 impact protection. Designed for high-output area and stadium lighting where long lifetime and high lumen output are required.

Product specifications
SKU: JNHM2-2450S-5700-A4-DIM
Power consumption: 2450 W (system power 2495 W)
Total lumen output: 281,500 lm — efficacy 120 lm/W
Beam angle: 30° (modules: 15°x15° fixed, symmetric)
Color temperature: 5700 K (cool white)
Driver: Meanwell HLG-1000H, dimmable 0-10V
IP/IK: IP65 / IK08
Surge protection: 10 kV — Power factor >0.95

Packaging & Shipping
Net weight: 44 kg
Export carton dimensions: 900×700×320 mm
Products per carton: 2
Export carton gross weight: 47 kg
Fixture dimensions (H×L×W): 550 mm × 480 mm × 320 mm

Technical specifications

• Product SKU: JNHM2-2450S-5700-A4-DIM
• Power Consumption: 2450 W
• System Power: 2495 W
• Input Voltage: 120-277 V (option: 347~488 V AC)
• Beam Angle: 30° (Beam Angle Range: 15°x15° fixed, Symmetric)
• IP Rating: IP65
• IK Rating: IK08
• CRI: >70
• LED Type: Philips Lumileds
• Colour Temperature: 5700 K
• Dimming: 0-10V (dimmable)
• LED Driver Brand: Meanwell HLG-1000H
• Surge Protection: 10 kV
• Power Factor: >0.95
• Input Cable: H07RN-F 3G2.5
• Lens Material: Tempered Glass
• Lifespan: 80,000 hours
• Total Lumens Output: 281,500 lm
• Efficacy: 120 lm/W
• Fixture Dimensions (H×L×W): 550 mm × 480 mm × 320 mm
• Working Temperature Range: -20°C ~ 45°C
• Working Humidity Range: 10% - 95% RH
• Housing Colour: Marine-Grey
• Warranty Period: 5 years
