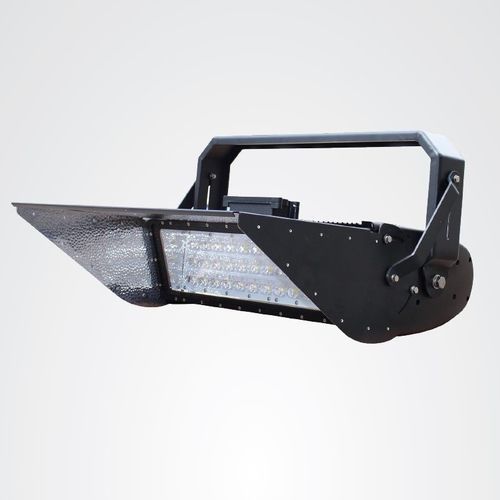

LED floodlight JNHM2-450S-5700-A5-DIM

IP65IK 08outdoor

Product description
The JNHM2-450S-5700-A5-DIM is a 450 W LED high-mast floodlight designed for industrial high-mast, stadium and port applications. It integrates Philips Lumileds LED modules and a Meanwell HLG-480H driver, supports 0-10V dimming and delivers a symmetric fixed 90°x90° beam at 5700 K (cool white). IP65-rated enclosure and IK08 impact protection make it suitable for outdoor operational environments.

Features

• Dimmable (0-10V)
• Philips Lumileds LED modules
• Meanwell HLG-480H LED driver
• IP65 ingress protection
• High efficacy: 120 lm/W
• Total lumen output: 51,500 lm
• Colour temperature: 5700 K (cool white)
• Colour Rendering Index (CRI) >70
• Power factor >0.95
• IK08 impact rating
• Surge protection: 10 kV
• Lens material: tempered glass
• Beam: symmetric 90°x90° (fixed)
• Number of LED modules: 4

Product Specifications
Product SKU: JNHM2-450S-5700-A5-DIM
Power Consumption: 450 W
System Power (driver + system): 495 W
Input Voltage: 120-277V AC (standard); 347~488V AC (optional)
LED Type: Philips Lumileds
LED Driver: Meanwell HLG-480H
Colour Temperature: 5700 K
CRI: >70
Beam Angle: 90°x90° (symmetric, fixed)
Total Lumen Output: 51,500 lm
Efficacy: 120 lm/W
Dimming: 0-10V
IP Rating: IP65
IK Rating: IK08
Housing Colour: Marine-Grey
Lens: Tempered glass
Surge Protection: 10 kV
Power Factor: >0.95
Lifespan: 80,000 hours
Fixture Dimensions (H×L×W): 550 × 480 × 320 mm
Net Weight: 10 kg
Warranty: 5 years

Packaging & Shipping
Net Weight (per unit): 10 kg
Export Carton Dimensions (mm): 900 × 700 × 320 mm
Products per Carton: 2
Export Carton Gross Weight (kg): 13 kg

Technical specifications

• SKU: JNHM2-450S-5700-A5-DIM
• Power Consumption: 450 W
• System Power: 495 W
• Input Voltage Range: 120-277V AC (standard); 347~488V AC (optional)
• LED Type: Philips Lumileds
• LED Driver Brand: Meanwell HLG-480H
• Colour Temperature: 5700 K
• CRI: >70
• Beam Angle: 90°x90° (symmetric, fixed)
• Total Output: 51,500 lm
• Efficacy: 120 lm/W
• Dimming Capability: 0-10V
• IP Rating: IP65
• IK Rating: IK08
• Housing Colour: Marine-Grey
• Lens Material: Tempered glass
• Surge Protection: 10 kV
• Input Cable: H07RN-F 3G1.0
• Operating Temperature: -20°C to 45°C
• Operating Humidity: 10% - 95% RH
• Lifespan (Hours): 80,000 hours
• Number of LED Modules: 4
• Fixture Dimensions (H×L×W): 550 × 480 × 320 mm
