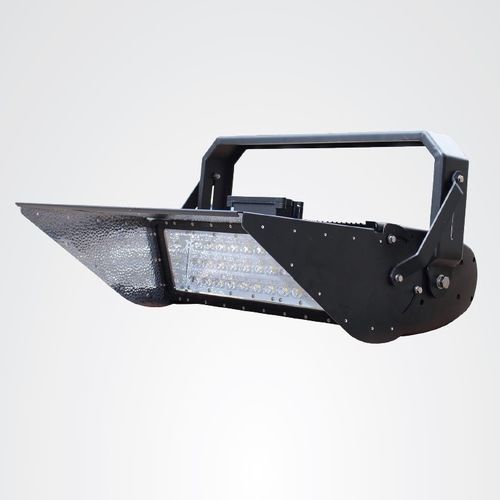

LED floodlight JNHM2-450S-5000-A3-ND

HIDHPSIP65

Short description
450 Watt LED flood light equipped with original Philips Lumileds and Meanwell HLG-480H driver. Non-dimmable. IP65 rated for outdoor high-mast applications. Replaces 100 Watt metal halide/HID/HPS.

SKU
JNHM2-450S-5000-A3-ND

Features

• Original Philips Lumileds LEDs
• Meanwell HLG-480H LED driver
• Non-dimmable
• IP65 rated for outdoor use
• IK08 impact rating
• Tempered glass lens
• Marine‑Grey housing
• 5 year warranty

Product Specifications (table)
Product SKU: JNHM2-450S-5000-A3-ND
Power Consumption: 450 W
Input Voltage: 120-277 V AC (347~488 V AC optional)
Beam Angle (°): 15°x15° (fixed, symmetric)
IP Rating: IP65
Color Rendering Index: >70
LED Type: Philips Lumileds
Color Temperature (K): 5000 K
IK Impact Rating: IK08
Dimming Capability: Non-dimmable
Housing Colour: Marine‑Grey
Warranty Period (Years): 5
Power Factor: >0.95
Surge Protection: 10 kV
Input Cable: H07RN-F 3G1.0
Working Temperature Range: -20°C ~ 45°C
Working Humidity Range: 10% - 95% RH
Lifespan (Hours): 80,000 hours
Beam Angle Range: 15°x15° (Fixed)
Number of LED Modules: 4 modules
LED Driver Brand: Meanwell HLG-480H
Lens Material: Tempered Glass
System Power (W): 495 W
Fixture Height (mm): 550 mm
Fixture Length (mm): 480 mm
Fixture Width (mm): 320 mm
Total Lumens Output: 51,500 lm
Efficacy (lm/W): 120 lm/W

Packaging & Shipping
Net Weight (kg): 10 kg
Export Carton Dimensions (mm): 900×700×320 mm
Products per Carton: 2
Export Carton Gross Weight (kg): 13 kg
Fixture Height (mm): 550
Fixture Width (mm): 320
Fixture Length (mm): 480

Gallery
Product images include the main product photo and dimension drawings.
