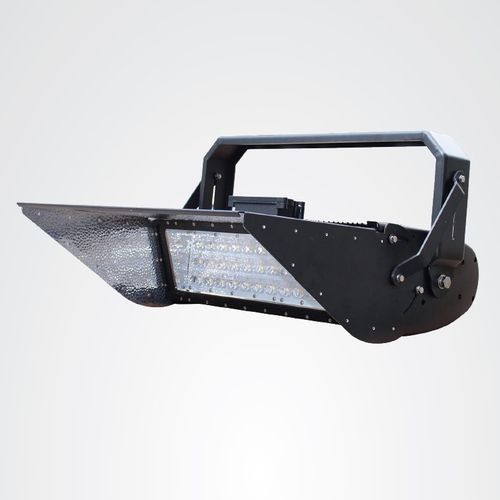

LED floodlight JNHM2-450S-5700-A1-DIM

anti-corrosionIP65IK 08

Short description
450 W LED high-mast floodlight, model JNHM2-450S-5700-A1-DIM. Fitted with Philips Lumileds modules and Meanwell HLG-480H driver. Symmetric 15°x15° beam for long-throw, cool white 5700 K output. 0-10V dimmable, IP65 and IK08 rated; total output 51,500 lm and efficacy 120 lm/W — designed for high-mast, stadium, port and industrial perimeter illumination.

Features

• Dimmable via 0-10V control
• Philips Lumileds LED modules (4 modules)
• Meanwell HLG-480H LED driver
• High ingress protection: IP65; Impact rating IK08
• Surge protection: 10 kV
• Tempered glass lens
• Marine-grey corrosion-resistant housing
• Power factor >0.95; Efficacy 120 lm/W; Lumen output 51,500 lm
• Designed for high-mast / flood applications

Product specifications (table)
Product SKU: JNHM2-450S-5700-A1-DIM
Power Consumption: 450 W
Input Voltage: 120-277 V AC (standard), 347~488 V AC (optional)
System Power (W): 495 W
Beam Angle (°): 15° (fixed)
Beam Angle Range: 15°x15° (fixed symmetric)
Beam Angle Format: Symmetric
Color Rendering Index (CRI): >70
Colour Temperature (K): 5700 K
LED Type: Philips Lumileds
Number of LED Modules: 4 modules
LED Driver Brand: Meanwell HLG-480H
Power Factor: >0.95
Surge Protection: 10 kV
IK Impact Rating: IK08
IP Rating: IP65
Lens Material: Tempered glass
Housing Colour: Marine-Grey
Dimming Capability: 0-10V
Working Temperature Range: -20°C ~ 45°C
Working Humidity Range: 10% - 95% RH
Lifespan (Hours): 80,000 hours
Total Lumens Output: 51,500 lm
Efficacy (lm/W): 120 lm/W
Fixture Height (mm): 550 mm
Fixture Length (mm): 480 mm
Fixture Width (mm): 320 mm
Warranty Period (Years): 5

Packaging & Shipping (table)
Net Weight: 10 kg
Export Carton Dimensions: 900 × 700 × 320 mm
Products per Carton: 2
Export Carton Gross Weight: 13 kg
Fixture Height (mm): 550
Fixture Width (mm): 320
Fixture Length (mm): 480

Technical specifications

• SKU: JNHM2-450S-5700-A1-DIM
• Power consumption: 450 W (system power 495 W)
• Input voltage: 120-277 V AC (347~488 V AC optional)
• LED modules: Philips Lumileds (4 modules)
• Driver: Meanwell HLG-480H
• Beam: 15°x15° symmetric (fixed)
• Total lumen output: 51,500 lm; Efficacy: 120 lm/W
• CRI: >70; CCT: 5700 K (cool white)
• Dimming: 0-10V
• IP rating: IP65; IK rating: IK08
• Lens: Tempered glass; Housing colour: Marine-Grey
• Surge protection: 10 kV; Power factor >0.95
• Operating temperature: -20°C to 45°C; Humidity: 10% - 95% RH
• Lifespan: 80,000 hours
• Warranty: 5 years
• Dimensions (HxLxW): 550 x 480 x 320 mm
• Net weight: 10 kg; Export carton gross weight: 13 kg
