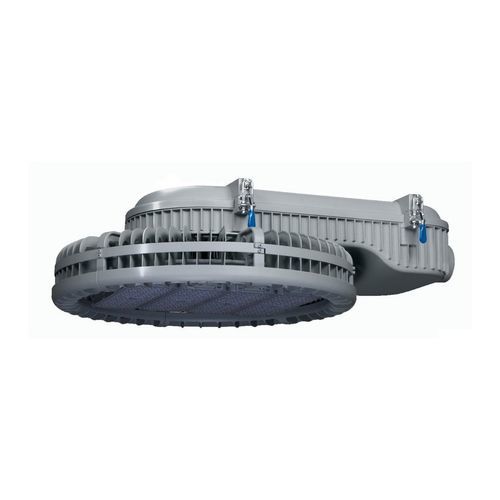

LED floodlight JNHM1-450S-5000-A5-DIM

anti-corrosionIP65IK 08

Overview
High-output 450 W LED high-mast light designed for stadiums, ports, logistics yards and industrial sites. Fitted with Philips Lumileds LEDs and Meanwell HLG-480H driver. Dimmable (0-10V), IP65 and IK08 rated for outdoor installations.

Key Features

• Philips Lumileds LED modules
• Meanwell HLG-480H LED driver (0-10V dimming)
• Type V distribution, 140°×140° beam
• IP65 ingress protection and IK08 impact resistance
• Marine-grey corrosion-resistant housing
• High system efficacy: 140 lm/W (total output 63,500 lm)

Product Specifications
Product SKU: JNHM1-450S-5000-A5-DIM
System Power: 495 W
Rated Power Consumption: 450 W
Input Voltage: 120-277V AC (347–488V AC optional)
Input Voltage Range: 120-277V AC / 347–488V AC (optional)
LED Type: Philips Lumileds
LED Driver: Meanwell HLG-480H
Color Temperature: 5000 K (cool white)
Color Rendering Index (CRI): >70
Beam Angle: 140°×140° (Type V fixed)
Total Luminous Flux: 63,500 lm
Efficacy: 140 lm/W
Power Factor: >0.95
Surge Protection: 10 kV
Dimming: 0-10V
IK Rating: IK08
IP Rating: IP65
Lens: Tempered glass
Number of LED Modules: 4
System Warranty: 5 years
Working Temperature: -20°C to 45°C
Working Humidity: 10%–95% RH
Lifespan: 80,000 hours
Fixture Dimensions (H×L×W): 854 × 610 × 238 mm
Net Weight: 30 kg
Input Cable: H07RN-F 3G1.0
System Power (label): 495 W

Packaging & Shipping
Net Weight (per unit): 30 kg
Export Carton Dimensions: 900 × 700 × 320 mm
Products per Carton: 2
Gross Weight per Carton: 34 kg
Fixture Dimensions (H×L×W): 854 × 610 × 238 mm

Technical Specifications

• Power: 450 W (system 495 W)
• Input Voltage: 120–277V AC (347–488V optional)
• Beam Angle: 140°×140° (Type V)
• IP Rating: IP65
• IK Rating: IK08
• LED: Philips Lumileds
• Driver: Meanwell HLG-480H
• Color Temperature: 5000 K
• CRI: >70
• Dimming: 0-10V
• Power Factor: >0.95
• Surge Protection: 10 kV
• Lens: Tempered glass
• Total Lumens: 63,500 lm
• Efficacy: 140 lm/W
• Lifespan: 80,000 hours
• Operating Temp: -20°C to 45°C
• Net Weight: 30 kg
• Fixture Dimensions: 854 × 610 × 238 mm
