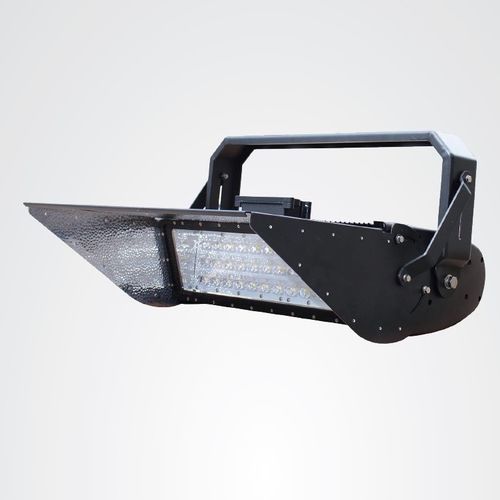

LED floodlight JNHM2-450S-5700-A3-ND

HIDanti-corrosionIP65

Short description
450 Watt LED high-mast floodlight with Philips Lumileds and Meanwell HLG-480H driver. Fixed symmetric 15°×15° beam, non-dimmable, IP65 and IK08 rated for outdoor industrial use. Typical replacement for 1000 W metal halide/HID installations.

Features

• Original Philips Lumileds LEDs
• Meanwell HLG-480H LED driver
• Non-dimmable
• IP65 weatherproof housing
• IK08 impact resistance
• Symmetric fixed beam 15°×15°
• Tempered glass lens
• Marine-grey corrosion-resistant housing
• 10 kV surge protection
• Power factor >0.95
• Operating temperature -20°C to 45°C
• Operating humidity 10%–95% RH
• Rated lifespan 80,000 hours

Product specifications (full table)
Product SKU: JNHM2-450S-5700-A3-ND
Power Consumption: 450 W
System Power (W): 495 W
Input Voltage: 120-277V AC (347~488V AC optional)
Beam Angle (°): 15°×15° (fixed)
IP Rating: IP65
IK Impact Rating: IK08
Color Temperature (K): 5700 K
Color Rendering Index: >70
LED Type: Philips Lumileds
LED Driver Brand: Meanwell HLG-480H
Dimming Capability: Non-dimmable
Housing Colour: Marine-Grey
Surge Protection: 10kV
Power Factor: >0.95
Input Cable: H07RN-F 3G1.0
Fixture Height (mm): 550 mm
Fixture Length (mm): 480 mm
Fixture Width (mm): 320 mm
Total Lumens Output: 51,500 lm
Efficacy (lm/W): 120 lm/W
Number of LED Modules: 4 modules
Lens Material: Tempered Glass
Lifespan (Hours): 80,000 hours

Packaging & Shipping
Net Weight (kg): 10 kg
Export Carton Dimensions (mm): 900×700×320 mm
Products per Carton: 2
Export Carton Gross Weight (kg): 13 kg

Technical specifications

• Model / Series: JNHM2 series
• Power: 450 W (system power 495 W)
• LEDs: Philips Lumileds
• Driver: Meanwell HLG-480H
• Beam: 15°×15° symmetric, fixed
• Lumen output: 51,500 lm (120 lm/W)
• IP/IK: IP65 / IK08
• Colour temperature: 5700 K
• CRI: >70
• Dimming: Non-dimmable
• Surge protection: 10 kV
• Power factor: >0.95
• Operating temperature: -20°C to 45°C
• Operating humidity: 10%-95% RH
• Weight: 10 kg
• Fixture dimensions (H×L×W): 550×480×320 mm
