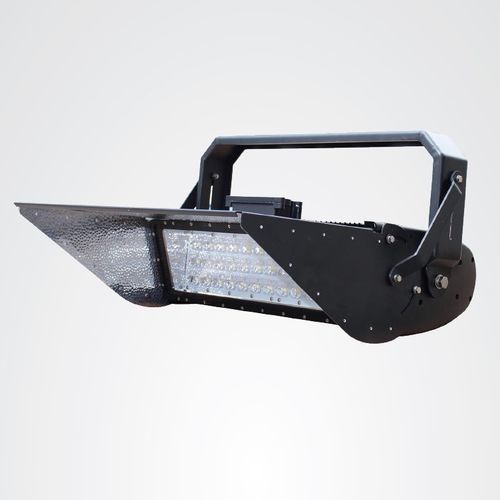

LED floodlight JNHM2-2450S-5700-A3-DIM

IP65IK 08shock resistant

Product Summary
2450 W LED high-mast floodlight equipped with Philips Lumileds and Meanwell driver(s). Dimmable (0-10V). IP65 ingress protection and IK08 impact rating. Available in far-throw, medium and short beam optics; designed for large-area and perimeter lighting applications.

Features

• Original Philips Lumileds LEDs
• Meanwell driver(s) (Meanwell HLG-1000H indicated)
• Dimmable (0-10V)
• IP65 ingress protection
• IK08 impact rating
• Marine-grey housing
• Far throw / medium / short beam options
• Long lifespan (80,000 hours)

Product Specifications (table)
Product SKU: JNHM2-2450S-5700-A3-DIM
Power Consumption: 2450 W
Input Voltage: 120-277 V (standard); 347~488 V optional
Beam Angle (°): 60° (symmetric)
IP Rating: IP65
Color Rendering Index: >70
LED Type: Philips Lumileds
Color Temperature (K): 5700
IK Impact Rating: IK08
Dimming Capability: 0-10V
Housing Colour: Marine-Grey
Warranty Period (Years): 5
Power Factor: >0.95
Surge Protection: 10 kV
Input Cable: H07RN-F 3G2.5
Working Temperature Range: -20°C ~ 45°C
Working Humidity Range: 10% - 95% RH
Lifespan (Hours): 80,000 hours
Beam Angle Range: 15°x15° (fixed option noted)
Beam Angle Format: Symmetric
Number of LED Modules: 8 modules
LED Driver Brand: Meanwell HLG-1000H
Lens Material: Tempered glass
System Power (W): 2495 W
Fixture Height (mm): 550 mm
Fixture Length (mm): 480 mm
Fixture Width (mm): 320 mm
Total Lumens Output: 281,500 lm
Efficacy (lm/W): 120 lm/W

Packaging & Shipping (table)
Net Weight (kg): 44 kg
Export Carton Dimensions (mm): 900×700×320 mm
Products per Carton: 2
Export Carton Gross Weight (kg): 47 kg
Fixture Height (mm): 550
Fixture Width (mm): 320
Fixture Length (mm): 480

Additional product attributes
Power (W): 2450
Voltage: 120-277 V
Beam Angle (°): 60°
IP Rating: IP65
CRI: >70
LED-Type: Philips Lumileds
Colour Temperature (K): 5700
IK Rating: IK08
Dimming: 0-10V
Housing Colour: Marine-Grey
Warranty (yr): 5
Power Factor: >0.95

Technical specifications

• SKU: JNHM2-2450S-5700-A3-DIM
• System Power: 2495 W
• Rated Power Consumption: 2450 W
• Input Voltage Range: 120-277 V AC (standard); 347~488 V AC optional
• LED: Philips Lumileds
• LED Driver: Meanwell HLG-1000H
• Total Lumen Output: 281,500 lm
• Efficacy: 120 lm/W
• Colour Temperature: 5700 K (cool white)
• CRI: >70
• Beam Angle: 60° (symmetric); additional spec 15°x15° fixed noted
• Dimming: 0-10V
• Surge Protection: 10 kV
• Power Factor: >0.95
• Number of LED Modules: 8
• Lens Material: Tempered glass
• IP Rating: IP65
• IK Rating: IK08
• Working Temperature: -20°C to 45°C
• Working Humidity: 10% - 95% RH
• Lifespan: 80,000 hours
• Fixture Dimensions (HxLxW): 550 x 480 x 320 mm
• Net Weight: 44 kg
