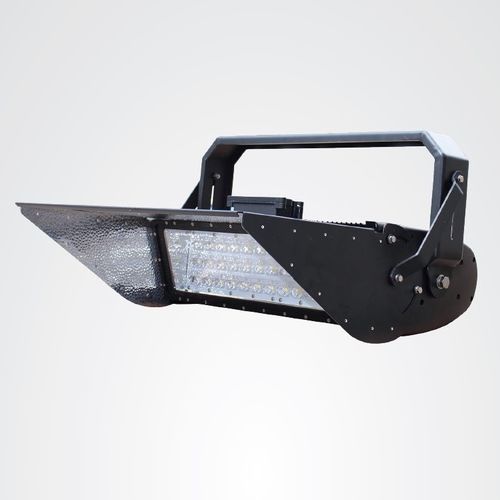

LED floodlight JNHM2-450S-5700-A2-DIM

IP65IK 08outdoor

Short description
450 W high-mast LED floodlight equipped with Philips Lumileds and Meanwell driver. Dimmable (0-10V), IP65, IK08. Total output 51,500 lm and efficacy 120 lm/W — designed for industrial and outdoor lighting applications (yards, ports, terminals, stadiums).

Features

• Dimmable (0-10V)
• Philips Lumileds LEDs
• Meanwell HLG-480H LED driver
• IP65 ingress protection
• IK08 impact rating
• Colour temperature: 5700K (cool white)
• CRI >70
• Beam angle: 60°x60° symmetric (fixed)
• 4 LED modules
• Total lumens: 51,500 lm; efficacy: 120 lm/W
• System power: 495 W (nominal consumption listed 450 W)
• Power factor >0.95; surge protection 10kV
• Lens: tempered glass; housing colour: Marine-Grey
• Operating temperature: -20°C to 45°C; humidity: 10%-95% RH
• Lifespan: 80,000 hours; warranty: 5 years

Product Specifications (table)
Product SKU: JNHM2-450S-5700-A2-DIM
Power Consumption: 450 W
Input Voltage: 120-277 V (347~488 V optional)
Beam Angle (°): 60°x60° (symmetric, fixed)
IP Rating: IP65
Color Rendering Index: >70
LED Type: Philips Lumileds
Color Temperature (K): 5700
IK Impact Rating: IK08
Dimming Capability: 0-10V
Housing Colour: Marine-Grey
Warranty Period (Years): 5
Power Factor: >0.95
Surge Protection: 10kV
Input Cable: H07RN-F 3G1.0
Working Temperature Range: -20°C ~ 45°C
Working Humidity Range: 10%-95% RH
Lifespan (Hours): 80,000 hours
Beam Angle Range: 60°x60° (Fixed)
Beam Angle Format: Symmetric
Number of LED Modules: 4 modules
LED Driver Brand: Meanwell HLG-480H
Lens Material: Tempered Glass
System Power (W): 495 W
Fixture Height (mm): 550 mm
Fixture Length (mm): 480 mm
Fixture Width (mm): 320 mm
Total Lumens Output: 51,500 lm
Efficacy (lm/W): 120 lm/W

Packaging & Shipping
Net Weight (kg): 10 kg
Export Carton Dimensions (mm): 900×700×320 mm
Products per Carton: 2
Export Carton Gross Weight (kg): 13 kg

Technical specifications

• SKU: JNHM2-450S-5700-A2-DIM
• Power Consumption: 450 W
• System Power: 495 W
• Input Voltage: 120-277 V (347~488 V optional)
• Input Cable: H07RN-F 3G1.0
• Beam Angle: 60°x60° (symmetric, fixed)
• Total Lumens: 51,500 lm
• Efficacy: 120 lm/W
• LED Type: Philips Lumileds
• LED Driver: Meanwell HLG-480H
• Number of LED Modules: 4
• Colour Temperature: 5700 K
• CRI: >70
• IP Rating: IP65
• IK Rating: IK08
• Dimming: 0-10V
• Lens Material: Tempered Glass
• Housing Colour: Marine-Grey
• Power Factor: >0.95
• Surge Protection: 10 kV
• Operating Temperature: -20°C to 45°C
• Operating Humidity: 10% - 95% RH
• Lifespan: 80,000 hours
• Warranty: 5 years
• Fixture Dimensions (H×L×W): 550 × 480 × 320 mm
• Net Weight: 10 kg
