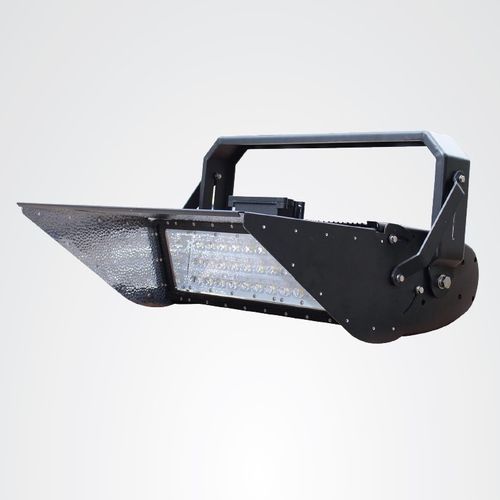

LED floodlight JNHM2-2450S-5700-A5-DIM

weather-resistantIP65IK 08

Product overview
High-output LED high-mast floodlight designed for industrial and infrastructure lighting. Equipped with Philips Lumileds modules and Meanwell drivers, delivering 281,500 lm at 120 lm/W. Dimmable (0-10V) and rated IP65 for outdoor use.

Key features

• Original Philips Lumileds LEDs (8 modules)
• Meanwell HLG-1000H LED driver(s)
• Dimmable control: 0-10V
• IP65 enclosure for weather resistance; IK08 impact rating
• Symmetric 90°x90° fixed beam for uniform area lighting
• Surge protection 10 kV; power factor >0.95
• High efficacy: 120 lm/W; total luminous flux 281,500 lm

Technical specifications

• SKU: JNHM2-2450S-5700-A5-DIM
• Power consumption: 2450 W (system power 2495 W)
• Input voltage: 120–277 V AC (347–488 V AC optional)
• Dimming protocol: 0–10 V
• Beam angle: 90° x 90° symmetric (fixed)
• Color temperature: 5700 K; CRI >70
• LED type: Philips Lumileds; Number of modules: 8
• Driver brand/model: Meanwell HLG-1000H
• Lens: tempered glass; Housing color: marine grey
• Surge protection: 10 kV; Power factor >0.95
• Operating temp: -20°C to 45°C; Humidity: 10%–95% RH
• Lifespan: 80,000 hours; Warranty: 5 years
• Dimensions (mm): H 550 × L 480 × W 320; Net weight: 44 kg

Applications & installation
Suitable for high-mast stadiums, ports, logistics yards, airports and large outdoor industrial areas. Designed for pole or bracket mounting; installation should follow local electrical codes and consider surge protection for exposed sites.

Packaging & shipping

• Net weight per unit: 44 kg
• Export carton dimensions: 900 × 700 × 320 mm
• Products per carton: 2; Gross weight per carton: 47 kg

Compliance & warranty
IP65 and IK08 ratings for outdoor use. Supplied with Meanwell drivers and surge protection. Standard warranty: 5 years. For extended support or site-specific certifications, contact the supplier.
