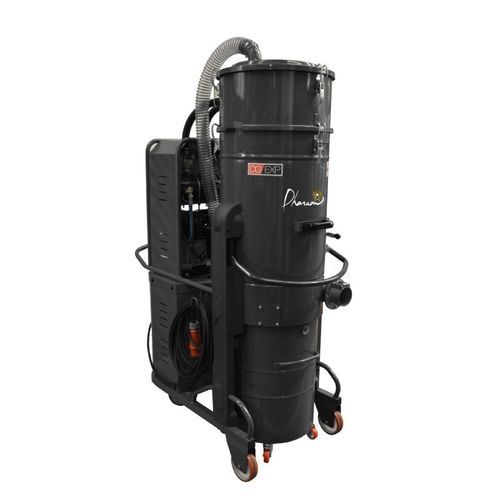

Industrial vacuum cleaner DG75AF PNdryhazardous dustfine dust
Add to favorites
Compare this product
Characteristics
- Domain
- industrial
- Type
- dry
- Substance vacuumed
- hazardous dust, fine dust, dust
- Power source
- three-phase
- Configuration
- wheel-mounted
- Container type
- steel
- Other characteristics
- anti-static, heavy-duty, low-noise, with self-cleaning filter
- Applications
- for the metallurgical industry, for the food industry, for machine tools, for the plastics industry, for mechanical industry
- Power
Max.: 7.5 kW
(10.2 hp)Min.: 7.5 kW
(10.2 hp)- Capacity
Max.: 0.1 m³
(3.5315 ft³)Min.: 0.1 m³
(3.5315 ft³)- Air flow
Max.: 700 m³/h
(24,720.3 ft³/h)Min.: 700 m³/h
(24,720.3 ft³/h)- Vacuum
Max.: 314 mbar
(5 psi)Min.: 314 mbar
(5 psi)- Noise level
Max.: 76 dB
Min.: 75 dB
- Weight
Max.: 180 kg
(396.83 lb)Min.: 170 kg
(374.79 lb)- Height
Max.: 1,750 mm
(69 in)Min.: 1,750 mm
(69 in)- Length
Max.: 66 cm
(26 in)Min.: 66 cm
(26 in)- Width
Max.: 1,180 mm
(46.5 in)Min.: 1,180 mm
(46.5 in)
Description
Overview
Industrial dust vacuum with a 7.5 kW three-phase motor, 100 L capacity, fitted with pneumatic pulse-jet cleaning (automatic compressed-air cleaning) for continuous operation without loss of suction. Recommended for demanding environments such as food processing, aluminium, PVC, machining and heavy industry.
Recommended applications
Construction and mobility
Reinforced industrial steel construction with epoxy paint for resistance in severe environments. Unit mounted on industrial-grade wheels to ensure mobility. 100 L tank equipped with wheels and a quick-release design for fast emptying without removing the filter or motor head.
Motor unit and power supply
Side-channel blower, powerful and quiet, 7.5 kW, 400 V three-phase, designed for continuous use on production lines. Motor protection IP55.
Filtration and automatic cleaning
Equipped with three antistatic M-class cartridge filters providing a large filter area (80,000 cm²). Cartridges are designed to capture fine dust, including particles potentially hazardous to health. Automatic compressed-air pulse-jet cleaning system allows regular filter cleaning during operation, ensuring continuous suction without performance loss.
Key features
Additional information
Dimensions indicated: 66 x 118 x 175 cm. Noise level mentioned in the description as 75 dB(A); the technical data sheet shows 76 dB. Weight indicated in the description: 170 kg (a page meta-data indicates 180 kg).
Technical specifications
Industrial dust vacuum with a 7.5 kW three-phase motor, 100 L capacity, fitted with pneumatic pulse-jet cleaning (automatic compressed-air cleaning) for continuous operation without loss of suction. Recommended for demanding environments such as food processing, aluminium, PVC, machining and heavy industry.
Recommended applications
- Food industry (silos, agricultural cooperatives)
- Aluminium industry
- Machining and PVC workshops
- Heavy industry and demanding industrial environments
Construction and mobility
Reinforced industrial steel construction with epoxy paint for resistance in severe environments. Unit mounted on industrial-grade wheels to ensure mobility. 100 L tank equipped with wheels and a quick-release design for fast emptying without removing the filter or motor head.
Motor unit and power supply
Side-channel blower, powerful and quiet, 7.5 kW, 400 V three-phase, designed for continuous use on production lines. Motor protection IP55.
Filtration and automatic cleaning
Equipped with three antistatic M-class cartridge filters providing a large filter area (80,000 cm²). Cartridges are designed to capture fine dust, including particles potentially hazardous to health. Automatic compressed-air pulse-jet cleaning system allows regular filter cleaning during operation, ensuring continuous suction without performance loss.
Key features
- Motor protection IP55
- High airflow suitable for industrial workstations
- Designed for low maintenance and long service life
- Suited to demanding industries
Additional information
Dimensions indicated: 66 x 118 x 175 cm. Noise level mentioned in the description as 75 dB(A); the technical data sheet shows 76 dB. Weight indicated in the description: 170 kg (a page meta-data indicates 180 kg).
Technical specifications
- Model: DG75AF PN
- Power: 7.5 kW (7500 W)
- Voltage: 400 V three-phase
- Max vacuum (mmH2O): 3200
- Max airflow (m3/h): 700
- Capacity: 100 L
- Filter area: 80,000 cm²
- Filtration: 3 antistatic M-class cartridge filters
- Cleaning: automatic compressed-air pulse-jet (operates during use)
- Noise level: 75 dB(A) (description) / 76 dB (data sheet)
- Dimensions (HxWxD): 175 x 118 x 66 cm (indicated)
- Weight: 170 kg (description); page meta: 180 kg
- Motor protection: IP55
- Vacuum family: Industrial
