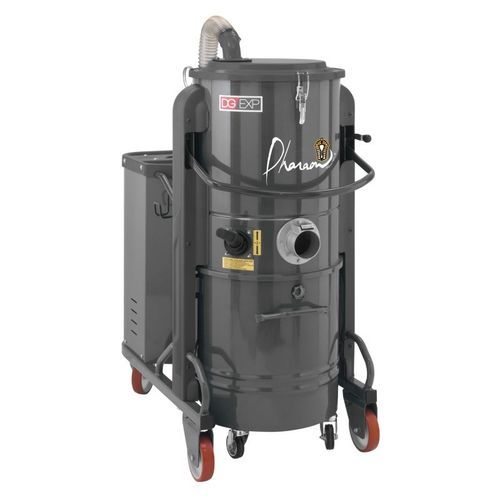

Industrial vacuum cleaner DG70EXP

drychipdust

Summary
DG70EXP industrial three-phase vacuum designed for the extraction of heavy waste and fine dust. Suited for continuous operation in industrial environments thanks to its three-phase motor and large filtration area.

Key features

• Suitable for extraction of heavy waste
• Three-phase motor for continuous use (motor protection IP55)
• Detachable tank on wheels for easy emptying
• Versatile: compatible with various dusts and waste types

Detailed description
The DG70EXP industrial vacuum is a best-seller in the range. Its self-ventilated three-phase motor reduces overheating risk and enables continuous operation. The unit is equipped with a vacuum gauge to monitor filter saturation and anticipate actions (de-dusting, filter replacement). Standard filter supplied is Class L; dedicated filters for specific applications (wood dust, aluminium chips, etc.) are available. PTFE filtration media maintain performance when handling fine and abrasive dusts. Ergonomics have been optimized: the detachable tank mounted on wheels simplifies emptying and maintenance.

Accessories / compatible parts (examples shown on the page)

• Seal for filter support ring D500 (associated product reference)
• Clamping collar for filter D500
• Tank gasket 10x22 (sold by the metre)

Technical specifications

• Max vacuum (mmH2O): 3600
• Max flow (m3/h): 530
• Capacity (L): 100
• Sound level (dB): 72
• Filter area (cm2): 30000
• Voltage (V): 400
• Power (W): 5500
• Vacuum family: Industrial
• Weight (kg): 150
• Motor protection: IP55
• Filter supplied: Class L (other compatible filters available)
• Filtration media: PTFE (high resistance to fine dust)
• Ergonomic options: detachable tank on wheels, vacuum gauge
