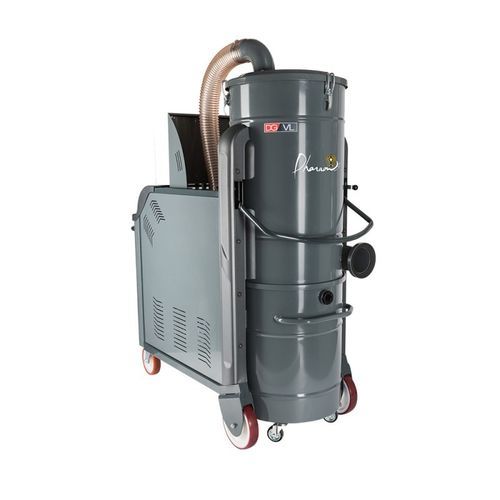

Industrial vacuum cleaner DGVL150SEPN

dryfine dusthazardous dust

Overview
The three-phase industrial vacuum DGVL150SEPN is designed for heavy industrial environments such as foundries, metallurgy, agricultural silos and building-materials manufacturing. It delivers very high vacuum (6 000 mmH2O) enabling efficient collection of heavy waste and dust. Its robust epoxy-painted steel construction increases resistance to demanding industrial conditions. The unit can operate standalone or be integrated into a central extraction network, offering high operational flexibility.

Motor and safety
The DGVL150SEPN is fitted with a three-phase motor engineered for continuous operation, suitable for production lines. The motor features IP65 protection and a safety valve to prevent overheating.

Filtration and unclogging
The advanced filtration system includes M 1µ filtration, suitable for fine and hazardous dusts, and a semi-automatic unclogging system to maintain filtration performance. The product page indicates a filter area of 70 000 cm² in the general description and 106 000 cm² in the technical data; both values are provided on the product sheet.

Handling and emptying
To facilitate handling, the vacuum is equipped with sturdy wheels (one with a brake) and casters under the 160-litre tank to simplify material evacuation. Lifting eyes and forklift pockets allow safe handling.

Applications

• Heavy industry (foundry, metallurgy)
• Agricultural silos and processes
• Building-materials manufacturing

Key features

• Very high vacuum: 6 000 mmH2O
• Three-phase motor for continuous operation and production lines
• IP65 protection and safety valve
• M 1µ filtration for fine and hazardous dusts
• Semi-automatic unclogging system
• 160 L tank with casters for easy emptying
• Lifting eyes and forklift pockets for safe handling

Technical data / specifications

• Model: DGVL150SEPN
• Brand: Pharaon
• Max vacuum (mmH2O): 6000
• Max flow (m3/h): 720
• Tank capacity: 160 L
• Sound level (dB): 78
• Filter area (values indicated): 70 000 cm² (description); 106 000 cm² (technical data)
• Filtration: M 1µ (suitable for fine and hazardous dusts)
• Voltage (V): 400
• Power (W): 15 000
• Vacuum family: Industrial
• Structure: epoxy-painted steel
• Motor protection: IP65
• Handling equipment: sturdy wheels (one with brake), casters under tank, lifting eyes, forklift pockets
