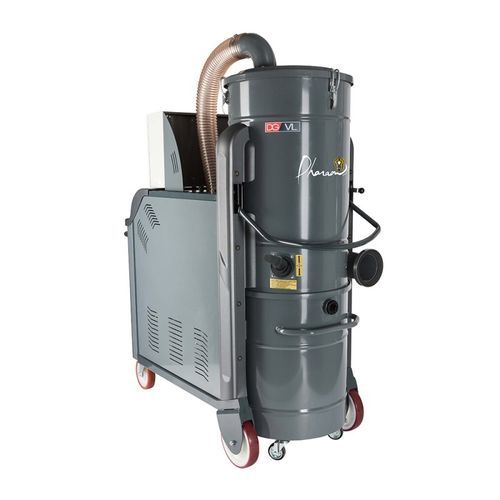

Industrial blower vacuum cleaner DGVL110 SE MAN

dryfine dustdust

Summary
Three-phase industrial vacuum for heavy and demanding dust extraction. Designed to collect very fine, compact or heavy dust over long distances or through fixed installations.

Key features

• Epoxy-painted steel heavy-duty frame
• Mobile, fitted with lifting eyes

Detailed presentation
The DGVL110 SE MAN is a three-phase, high-vacuum model specifically engineered for complex industrial applications that require extraction of very fine, compact or heavy dust over long distances or via fixed piping systems. Its power and robustness make it suitable for critical environments such as cement plants, foundries, cutting shops or central vacuum collection zones.

The unit is based on an 11 kW side-channel blower delivering a maximum vacuum of 5 100 mmH₂O (4 300 mmH₂O continuous) with an airflow of 520 m³/h. This configuration enables handling of very dense materials drawn from long distances or through long/complex ductwork. Designed for 24/7 operation, the motor is IP65 protected and includes a vacuum relief valve to safeguard the unit in case of blockage or heavy-duty use.

Filtration is centered on an antistatic polyester pocket filter class M, providing a filtering area of 70 000 cm², suitable for capturing particles down to 1 micron. A manual filter-cleaning system is integrated to allow rapid and effective filter maintenance, preserving suction performance even under severe conditions. The tangential inlet airflow combined with a separation cyclone forces dust to precipitate into the tank without direct contact with the filter, reducing premature clogging. Optionally, a HEPA H14 absolute filter can be added for toxic or health-risk dusts.

The 160-liter steel collection bin is detachable and mounted on castors, ensuring simple, clean and quick emptying, even on site. It is also compatible with direct bagging systems into disposable bags for hygienic, contact-free disposal of hazardous waste. The epoxy-painted steel chassis, reinforced industrial wheels and lifting eyes provide reliable mobility even in complex or congested industrial areas.

Typical applications

• Extraction of heavy dust over several tens of meters
• Central cleaning of silos, hoppers or conveyors
• Recovery of metal waste, sanding residues or fine swarf
• Maintenance of production areas exposed to very fine or sticky pollutants

Characteristics / technical specifications

• Model: DGVL110 SE MAN
• Dimensions (L×W×H): 170 x 74 x 200 cm
• Max vacuum: 5 100 mmH₂O (4 300 mmH₂O continuous)
• Max airflow: 520 m³/h
• Tank capacity: 160 L
• Sound level: 72 dB
• Filtering area: 70 000 cm²
• Voltage: 400 V
• Blower power: 11 000 W (11 kW)
• Primary filter: ANT M (antistatic polyester pocket filter, class M)
• Cleaning system: Manual
• HEPA H14 absolute filtration: Option
• Indicated weight: 290 kg
• Vacuum family: Industrial
• Air inlet diameter: 120 mm
