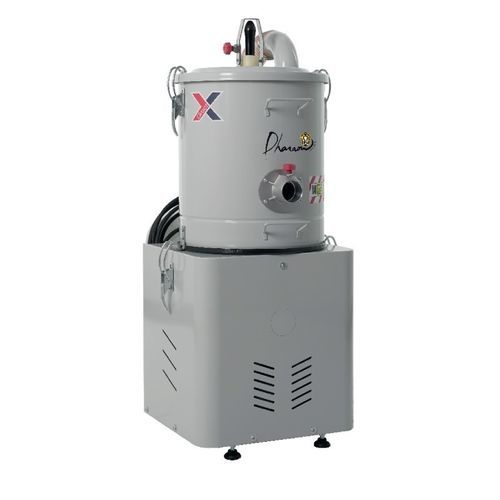

Industrial vacuum cleaner DBFV30

drychiphazardous dust

Overview
DBFV30 is a vertical three-phase industrial vacuum unit, compact and designed for direct extraction of dust, chips and fine particles on production machines. Its vertical compact design allows OEM inline or machine-mounted integration while ensuring continuous, powerful suction 24/7.

Functions and applications

• Direct extraction of dust, chips and fine particles at production machines.
• Designed for continuous heavy-duty operation (24/7) with motor protection via an integrated safety valve.
• Easy integration in industrial and OEM environments due to its compact footprint.

Construction and filtration

• Three-phase side-channel blower (400 V) providing suction adapted to industrial applications.
• M-class antistatic polyester pocket filter (filter area 8,000 cm², Ø 360 mm) for efficient capture of fine and hazardous dust.
• Manual cleaning/de-clogging system by handle for maintenance and performance retention.
• 25 L tank, robust epoxy-painted steel construction for industrial use.

Key benefits

• Compact vertical design suitable for inline or machine-mounted integration.
• Effective M-class antistatic filtration for fine and hazardous dust.
• 25 L tank and robust construction for demanding industrial environments.

Technical data / specifications

• Model: DBFV30
• Blower: three-phase side-channel
• Voltage: 400 V (three-phase)
• Power: 2.2 kW (2200 W)
• Max flow: 320 m³/h
• Max vacuum: 3 100 mmH₂O
• Rated vacuum: 2 300 mmH₂O
• Filter area: 8 000 cm²
• Filter: M-class antistatic polyester pocket filter (Ø 360 mm)
• Primary filter: ANT M
• Cleaning system: manual by handle
• Air inlet: 50 mm
• Tank: 25 L
• Weight: 50 kg
• Dimensions: 55 x 54 x 103 cm
• Sound level: 70 dB(A)
• Structure material: epoxy-painted steel
• Use: continuous extraction on production machines (dust, chips, fine particles)
• Feature: integrated safety valve for motor protection
