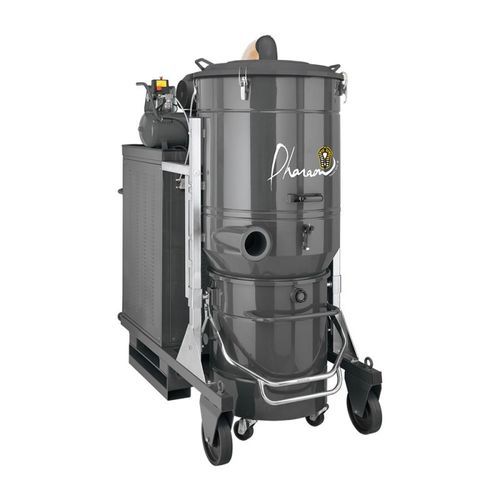

Industrial vacuum cleaner DG300SE PN

drydustthree-phase

Overview
The DG300SE PN is a three-phase, large-capacity (220 L) industrial dust vacuum engineered for the collection of dust, light and heavy debris in high volumes. Designed for continuous heavy-duty use, it delivers high suction performance for demanding applications.

Detailed description
The DG300SE PN features high-suction capability, making it suitable for heavy dust and waste collection. The unit is built on a steel chassis and fitted with large polyurethane wheels for stability and maneuverability on uneven surfaces. A PTFE filter provides an extensive filtering area (260,000 cm²). Automatic filter unclogging is performed by a pneumatic reverse-flow system (PN), simplifying maintenance and extending filter life. The detachable 220 L bin on rollers allows quick emptying and minimal downtime for continuous operation.

Main advantages

• High suction capacity, suitable for heavy dust and debris
• Designed for intensive continuous use
• Automatic filter cleaning via pneumatic cylinder (counter-flow PN)
• Very large filter area (PTFE filter)
• Detachable 220 L collection bin on rollers for easy emptying
• Steel chassis and large polyurethane wheels for durability and mobility

Technical specifications

• Max vacuum (mmH2O): 5000
• Max airflow (m3/h): 1100
• Capacity (L): 220
• Sound level (dB): 77
• Filter area (cm²): 260000
• Voltage (Volts): 400
• Power (W): 20000
• Vacuum family: Industrial
• Air inlet (mm): 120
