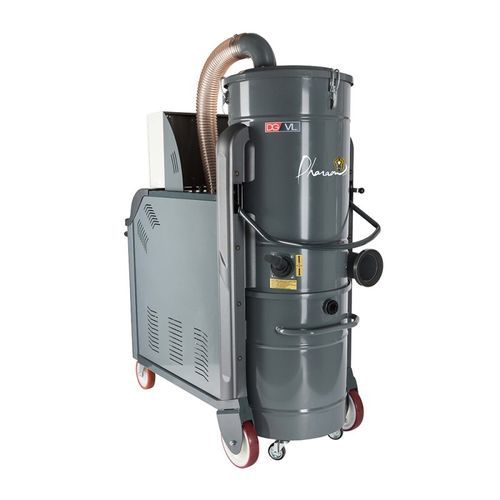

Industrial drum vac DGVL110MAN

dryfine dustdust

Description
Industrial vacuum cleaner designed for heavy-duty applications. Model DGVL110MAN equipped with a maintenance-free side-channel blower (11 kW) and IP55 protection. High-performance primary filtration and a manual de-clogging system (handle and internal shaft) ensure complete cleaning of the filter. Optional HEPA H14 absolute filtration is available.

Functional summary

• Continuous operation
• Heavy-duty industrial applications
• Manual de-clogging (handle, internal shaft to break the filter cake)

Detailed description
The DGVL110MAN is an industrial vacuum built for demanding environments. It delivers 11 kW via a maintenance-free side-channel blower operating at 400 V. The motor includes a vacuum-limiting valve and IP55 protection. The unit reaches a peak vacuum up to 4000 mm H2O and 2600 mm H2O in continuous operation. Primary filtration is an antistatic ANT M pocket filter (class M, 1 µm) with a filter area of 70 000 cm², suitable for fine dust (wood, flour, aluminium, etc.). The manual de-clogging system, using a handle and an internal shaft, cleans the filter from top to bottom to ensure complete de-clogging. An optional HEPA H14 absolute filter is available.

Typical applications

• Extraction of fine dust (wood, flour, aluminium)
• Heavy industry and workshops requiring continuous suction
• Environments requiring antistatic filtration and HEPA options

Technical specifications

• Model: DGVL110MAN
• Power: 11 kW (11 000 W)
• Voltage: 400 Volts
• Motor type: maintenance-free side-channel blower
• Max vacuum: 4000 mm H2O
• Continuous vacuum: 2600 mm H2O
• Maximum flow: 1050 m³/h
• Tank capacity: 160 L
• Sound level: 74 dB
• Filter area: 70 000 cm²
• Primary filter: ANT M (antistatic), class M, 1 µm
• Cleaning system: manual (handle + internal shaft to break filter cake)
• Absolute filtration (option): HEPA H14 available
• Vacuum family: Industrial
