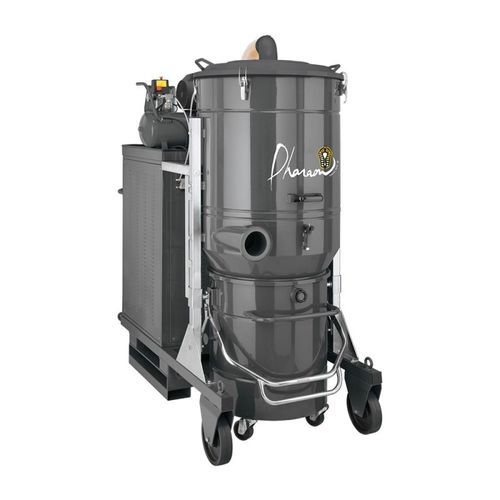

Industrial vacuum cleaner DG200PN

drydustthree-phase

Overview
The DG200PN is a three-phase industrial vacuum designed for extraction of dust as well as light and heavy debris. It features a detachable 220 L waste container on castors to simplify maintenance and emptying.

Key features

• High-efficiency vacuum for continuous heavy-duty use
• Vacuum limiting valve included
• Automatic filter cleaning by pneumatic reverse-flow (PN)

Detailed description
The DG200PN stands out for its durability with a steel chassis and four large polyurethane wheels providing stability and mobility on uneven or rough floors. It is fitted with a high-performance suction unit cast in aluminum for optimal operation in continuous intensive service. The filtration system uses a high-quality PTFE filter offering a filtration area of 260,000 cm². Automatic filter cleaning is performed pneumatically via a reverse-flow (PN) system, simplifying maintenance and extending equipment life. The 220 L container is detachable and mounted on castors for fast maintenance and uninterrupted operation.

Technical specifications

• Max vacuum (mmH2O): 4400
• Max airflow (m3/h): 1350
• Capacity (L): 220
• Sound level (dB): 77
• Filtration area (cm²): 260,000
• Voltage (V): 400
• Power (W): 18,500
• Weight (kg): 685
• Vacuum family: Industrial
• Air inlet (mm): 120
