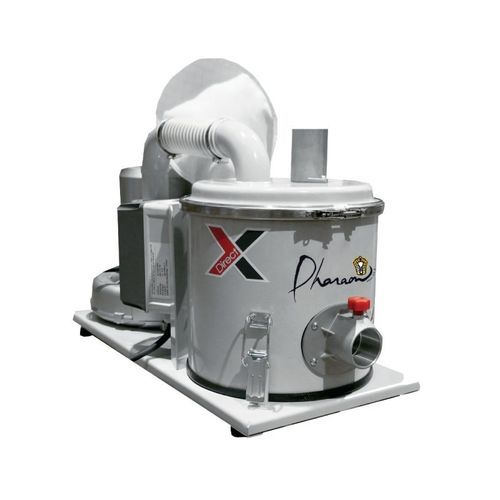

Filter dust collector DBF05

for the textile industrycompactvacuum

Presentation
The DBF05 is a compact industrial three-phase vacuum unit designed for continuous source extraction of dust and chips. It is built for easy integration with production machines and OEM lines, providing continuous reliable extraction for 24/7 operation.

Key points

• Compact and low-noise, suitable for OEM integration
• Continuous 24/7 operation
• Epoxy-painted steel construction for industrial environments

Detailed description
The DBF05 is equipped with a side-channel blower driven in three-phase 400 V, providing power suitable for light to medium extraction tasks. An integrated safety valve protects the motor against overload by limiting the vacuum. The filtration system uses an M-class polyester filter with PTFE treatment, ensuring effective capture of fine dust and strong mechanical and chemical resistance. Its horizontal configuration with a 15 L tank allows easy installation where space is limited. The reduced sound level enables use close to operators without significant disturbance.

Accessibility and use
Designed for direct-source extraction on workstations and machines, suitable for workshops and industrial environments requiring continuous and reliable extraction. Recommended for fine dust, textile fibers and general dust in local extraction applications.

Technical characteristics / specifications

• Model: DBF05
• Motor: side-channel blower, three-phase
• Voltage: 400 V
• Power: 0.4 kW (400 W)
• Max flow: 100 m3/h
• Max vacuum: 1500 mmH2O
• Filtration: M-class polyester filter with PTFE treatment
• Filter area: 2000 cm²
• Tank: 15 L
• Sound level: 65 dB(A)
• Air inlet: 50 mm
• Weight: 30 kg
• Dimensions: 75 x 34 x 42 h (cm)
• Construction: epoxy-painted steel
