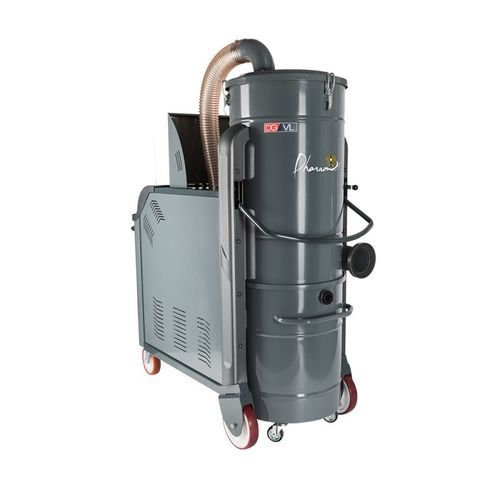

Industrial vacuum cleaner DGVL75PN

drydustthree-phase

Overview
Designed for demanding industrial environments, the DGVL75PN is a high-capacity vacuum cleaner suitable for continuous extraction of dust and heavy materials in steel mills, foundries, aluminum and PVC industries, and food processing facilities.

Key points

• Three-phase motor designed for continuous operation (protection IP55).
• Forklift pockets to facilitate mobility.
• Tangential hopper inlet with integrated separation cyclone to protect the filter.

Detailed description
The DGVL75PN is equipped with a three-phase motor with IP55 protection, offering a motor power range from 7.5 to 15.5 kW depending on configuration. It ensures a maximum vacuum of 4500 mmH₂O and a high airflow of 750 m3/h. The epoxy-painted steel construction provides durability for heavy industrial use.

Filtration and maintenance

• Main polyester antistatic filter, category M (compliant with EN 60335-2-69).
• Filter area: 106 000 cm².
• Automatic cleaning (blowback) system with integrated compressor to maintain performance and extend filter life.
• Tangential inlet with integrated separation cyclone to drop dust into the hopper and protect the filter.
• Detachable 160-litre collection hopper for fast emptying without direct contact with the filtered material.

Safety and ergonomics

• Safety system including an integrated safety valve and vacuum limiting device to protect the motor.
• Controlled sound level: 72 dB(A).
• Mounted on industrial wheels and fitted with forklift pockets, designed for operator safety and mobility and to help reduce musculoskeletal disorders (MSDs).

Recommended applications

• Steel mills, foundries
• Aluminum and PVC industries
• Food processing
• Other industrial environments requiring continuous extraction and handling of heavy materials

Technical specifications

• Maximum vacuum (mmH₂O): 4500
• Maximum airflow (m3/h): 750
• Capacity (L): 160
• Sound level (dB): 72
• Filter area (cm²): 106 000
• Voltage (Volts): 400
• Power (W): 7500 (product sheet indicates a motor power range between 7.5 and 15.5 kW depending on configuration)
• Filter: polyester antistatic category M (EN 60335-2-69)
• Motor protection: IP55
• Vacuum family: Industrial
