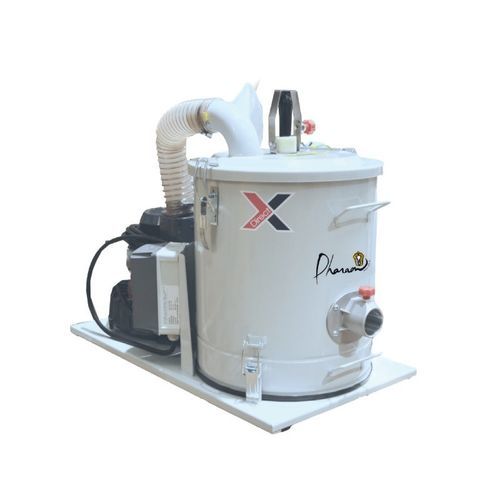

Dust extraction unit DBF30

Overview
The DBF30 is a compact industrial three-phase vacuum unit engineered for direct extraction of dust, chips and fine particles at production machines. Its horizontal compact format suits OEM integration and continuous 24/7 operation.

Key points

• Compact horizontal design, ideal for OEM integration
• Antistatic polyester pocket filter, category M, effective on fine and hazardous dusts
• 25 L container, robust construction for industrial environments

Description
Equipped with a three-phase side-channel blower (400 V, 2.2 kW), the DBF30 delivers high suction capacity and significant air flow for local machine extraction. An integrated safety valve protects the motor by maintaining stable negative pressure. Filtration is based on an ANT M antistatic polyester pocket filter (large surface area), complemented by a manual shaker handle for de-dusting without direct operator exposure. The epoxy-painted steel structure provides durability and suitability for industrial use.

Technical data / specifications

• Model: DBF30
• Blower: three-phase side-channel
• Voltage (V): 400
• Power: 2.2 kW (2200 W)
• Max flow (m3/h): 320
• Max vacuum: 3 100 mmH2O
• Vacuum (also indicated): 2 300 mmH2O
• Max vacuum (mmH2O) (datasheet): 3100
• Air inlet (mm): 50
• Filter area (cm2): 8 000
• Primary filter: ANT M (antistatic polyester pocket filter, Ø 360 mm)
• Cleaning system: manual shaker handle
• Container: 25 L
• Weight (mentioned): 45 kg (product description)
• Weight (datasheet): 40 kg
• Dimensions (L x W x H): 84 x 44 x 67 H (cm)
• Sound level (dB): 71 dB(A)
• Construction: epoxy-painted steel structure
• Use: direct machine extraction, OEM integration, continuous industrial suction
