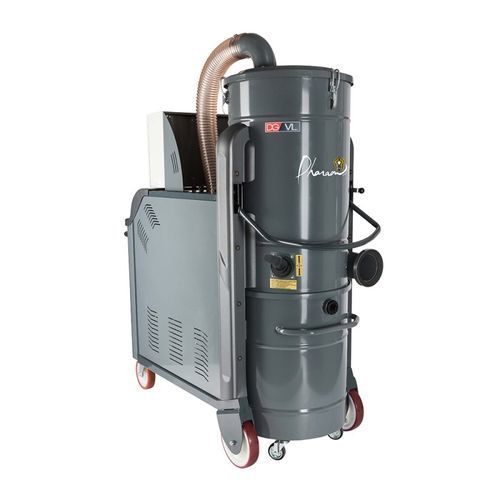

Industrial vacuum cleaner DGVL75 MAN

drydustfine dust

Overview
The DGVL75MAN industrial vacuum is a three-phase, high-performance unit designed for continuous heavy-duty use in industrial environments. It is suitable for extracting fine dust, dry waste and abrasive particles in demanding settings (mechanical workshops, aluminum processing, PVC industry, food industry). The system is engineered for continuous operation and simplified maintenance.

Main features

• 7.5 kW side-channel blower, low-noise and maintenance-free, designed for continuous 24/7 operation.
• Maximum vacuum 4 500 mmH₂O (3 200 mmH₂O continuous) and airflow 750 m³/h for effective extraction during long operating periods.
• IP55 protection and integrated safety valve for reliable operation in dusty or humid environments.
• Filtration by antistatic polyester pocket filter class M (filter area 70 000 cm²) capable of retaining particles down to 1 micron.
• Tangential cyclone separation that precipitates particles into the hopper before the filter to extend filter life and reduce clogging.
• Simple and robust manual cleaning system to maintain constant suction performance.
• Optional HEPA H14 absolute filtration (filter area 103 500 cm²) for capture of very fine or hazardous dusts.
• 160-litre collection hopper on wheels, detachable for quick and hygienic emptying; optional direct bagging into disposable bags.
• Epoxy-painted steel chassis with industrial wheels and lifting eyes for easy mobility and handling.
• Designed for heavy industrial applications with easy maintenance and adaptability (metal and plastic dust, production waste collection).

Technical specifications

• Dimensions: 170x74x200h
• Maximum vacuum (mmH₂O): 4500
• Maximum airflow (m3/h): 750
• Capacity (L): 160
• Sound level (dB): 72
• Filter area (cm²): 70000
• Voltage (Volts): 400
• Power (W): 7500
• Primary filter: ANT M (antistatic polyester pocket filter, class M)
• Cleaning system: Manual
• HEPA H14 absolute filtration: Option (103 500 cm²)
• Weight (kg): 350
• Vacuum family: Industrial
• Air intake (mm): 120
