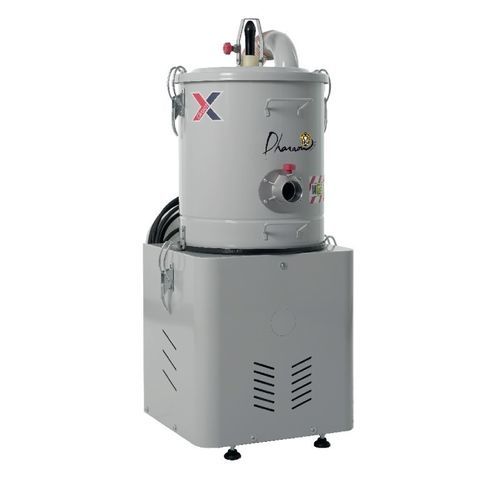

Industrial vacuum cleaner DBFV20

drychiphazardous dust

Overview
The DBFV20 is a compact vertical industrial vacuum unit, three-phase, designed for direct extraction of dust and chips at source on production machines. It supports continuous 24/7 operation and integrates easily into OEM lines thanks to its vertical format and epoxy-painted steel construction.

Main features

• Continuous 24/7 suction with motor protected by a safety valve.
• Antistatic polyester pocket filter, class M, effective on fine and hazardous dusts.
• Manual filter cleaning system (handle) to maintain performance and extend filter life.
• 25 L collection tank, vertical compact design for workshop integration.

Performance and composition
Equipped with a three-phase side-channel blower 400 V delivering 1.8 kW (1800 W). Engineered to capture fine dust thanks to a large filtration area and a primary filter ANT M.

Applications / Materials

• Textile fibers
• Dusts (including fine and hazardous dusts)

Specifications / technical data

• Model: DBFV20
• Blower: three-phase side-channel 400 V
• Power: 1.8 kW (1800 W)
• Vacuum (indicated): 2200 mmH₂O
• Max vacuum (indicated): 3000 mmH₂O
• Max air flow: 270 m³/h
• Tank: 25 L
• Filter area: 8000 cm² (antistatic polyester pocket filter class M, Ø 360 mm)
• Primary filter: ANT M
• Filter cleaning: manual by handle
• Air inlet: 50 mm
• Dimensions (W x D x H): 55 x 54 x 103 cm
• Weight: 45 kg
• Sound level: 69 dB(A)
• Construction: epoxy-painted steel
• Use: direct extraction of dust and chips at source; integration on production machines for continuous suction
