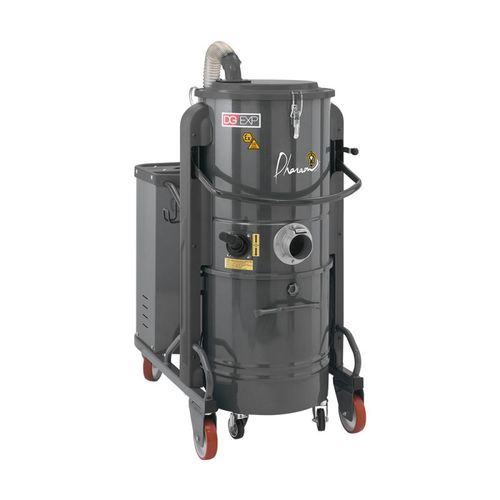

Industrial vacuum cleaner DG30EXP

dryfine dustdust

Summary
The DG30EXP is a three-phase industrial vacuum cleaner designed for continuous operation in industrial environments. It is suitable for collecting heavy waste and fine dust thanks to its side-channel blower and high-performance filtration system.

Key features

• Suitable for collecting heavy waste
• Three-phase motor for continuous use
• Detachable collection tank on wheels for easy emptying
• Versatile (industry, construction, aluminium/PVC processing...)

Details and construction
Industrial design in epoxy-painted steel providing high mechanical resistance and extended durability. Equipped with an ergonomic push handle, industrial-quality multidirectional wheels and a cable storage compartment to facilitate handling and movement in confined areas. The collection tank has a capacity of 100 litres, is mounted on wheels, is easily detachable and allows direct bagging into disposable bags for hygienic maintenance.

Suction system and safety
Side-channel blower known for its power, quiet operation and long service life, requiring low maintenance. Integrated safety valve to prevent motor overheating.

Filtration
Polyester bag filter with a large filtering surface (30 000 cm²) to retain dust effectively, including an integrated manual de-clogging system allowing cleaning without production interruption. Optional: absolute H/HEPA filter (26 000 cm²) compliant with EN 1822-5 for applications requiring very fine filtration.

Accessories and compatible parts

• Gasket for D500 filter support ring (reference shown on the page)
• Clamping collar for D500 filter (reference shown on the page)
• Tank gasket 10x22 sold by the metre (reference shown on the page)

Technical characteristics / specifications

• Max vacuum (mmH₂O): 3200
• Max airflow (m3/h): 318
• Capacity (Lt): 100
• Sound level (dB): 72
• Filtering surface (cm²): 30000
• Voltage (Volts): 400
• Power (W): 3000
• Vacuum family: Industrial
