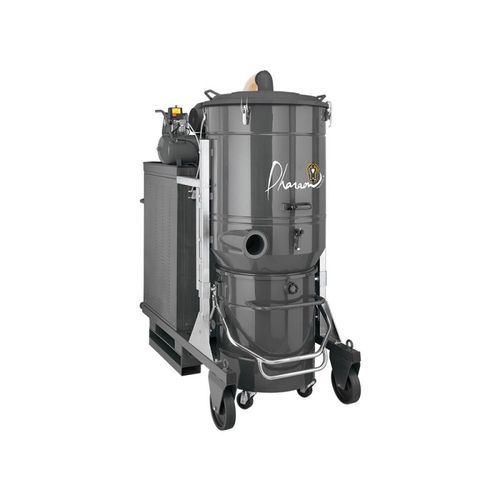

Industrial vacuum cleaner DG200

wetdrydust

Product summary
The DG200 from Pharaon is a high-performance three-phase industrial vacuum designed for heavy-duty industrial applications. It delivers high airflow and long operating autonomy thanks to its large filtration surface and high-capacity collection tank.

Main functional characteristics
The DG200 features automatic filter shaking (hydropneumatic cylinder). It is fitted with an M-class antistatic pocket filter in PTFE-treated polyester to preserve performance over time. The unit is driven by a direct-drive 18.5 kW motor protected by a magnetic-thermal switch and IP65 rating. The machine includes a vacuum-limiting valve and a safety filter to ensure continuous motor cooling.

Use and applications

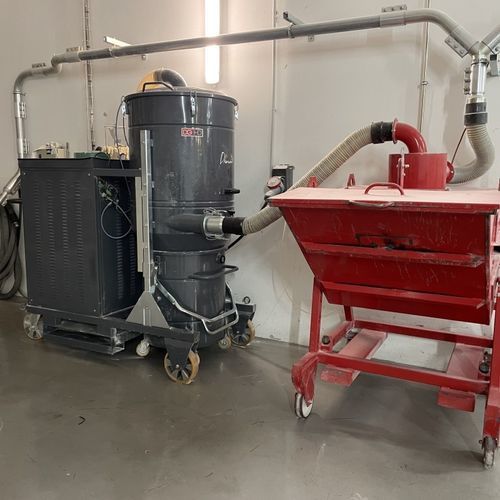

Designed for intensive industrial use, the DG200 can operate as a central vacuum unit and be connected to a centralized extraction network with dry columns to allow simultaneous work by multiple operators. Suitable for extracting dust, debris, compatible liquids, crystalline silica and other industrial materials depending on configuration and filters used.

Advantages

• High-efficiency suction for intensive operations.
• IP65 motor protection ensuring durability and reliability.
• Automatic filter shaking (hydropneumatic) for extended autonomy and sustained performance.
• Very large filtration surface to minimize maintenance interventions.
• Large 220 L collection tank for long runs without frequent emptying.
• Capable of connection to a centralized extraction network.

Compatible accessories (examples shown on the page)

• Seal for filter support ring (reference shown on the page).
• Clamping collar for filter (reference shown on the page).
• Tank gasket (reference shown on the page).

Characteristics / technical specifications

• Maximum vacuum (mmH₂O): 4400
• Maximum flow (m3/h): 1350
• Capacity (L): 220
• Sound level (dB): 77
• Filtration surface (cm²): 120000
• Voltage (V): 400
• Power (W): 18500
• Filter: M-class pocket filter, antistatic, PTFE-treated polyester
• Automatic shaking: hydropneumatic cylinder
• Motor protection: IP65, magnetic-thermal switch
• Safety system: vacuum-limiting valve with safety filter
• Application: can be connected to a centralized extraction network (dry columns) for multiple operators
