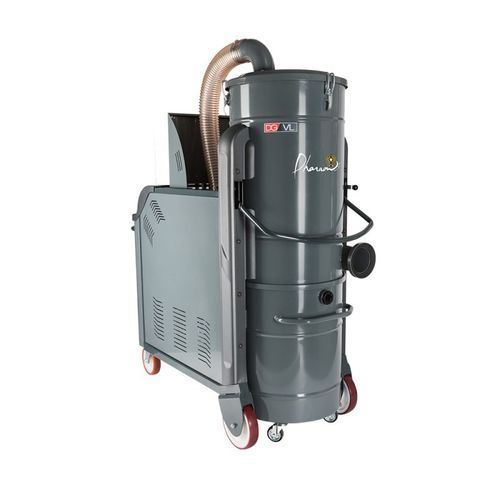

Industrial drum vac DGVL125PN

drydustfine dust

Overview
The DGVL125PN is designed for demanding industrial environments. Suited to aerospace, food processing, construction and heavy industry, this high-performance vacuum meets strict requirements for efficiency, filtration and operational safety.

Operation and motorisation
Equipped with a robust three-phase motor for continuous operation and minimal maintenance. Motor protection rating IP65 and integrated safety valve ensure reliable performance under severe conditions. Can operate as a standalone unit or as a motor group for a central vacuum system.

Filtration
High-performance filtration unit fitted with an antistatic polyester pocket filter, M class (1 µm) according to EN 60335-2-69, offering a large filtration surface. Semi-automatic compressed-air cleaning is provided by an on-board compressor to ensure effective automatic cleaning of filter media. Optional absolute HEPA H14 filtration (EN 1822-5) is available for the finest hazardous dusts.

Applications and connectivity
Operable as a standalone unit or as a motor group for a centralized extraction network. Can be connected to a dry column, cyclonic separator or existing ductwork and integrates with production lines and industrial extraction systems.

Mobility and safety
Built with a reinforced industrial frame while remaining mobile and easy to handle thanks to industrial-grade wheels and forklift pockets, facilitating safe transport and reducing manual handling risks.

Key features

• Integrated semi-automatic cleaning system
• Adapted for production lines
• Three-phase motor for continuous operation

Technical specifications

• Max vacuum (mmH2O): 4000
• Max airflow (m3/h): 1100
• Tank capacity (L): 160
• Sound level (dB): 72
• Filter surface (technical sheet): 106,000 cm²
• Filter surface (polyester pocket filter, description): 70,000 cm²
• Voltage (V): 400
• Power (W): 12,500
• Vacuum family: Industrial
• Weight (kg): 360
• Motor protection: IP65
• Cleaning: semi-automatic compressed-air via on-board compressor
• Filter: antistatic polyester pocket filter, M class (1 µm) (EN 60335-2-69)
• Optional absolute filtration: HEPA H14 (EN 1822-5)
• Use: standalone or motor group for central system
• Compatibility: dry column, cyclonic separator, ductwork
• Mobility: industrial wheels and forklift pockets
