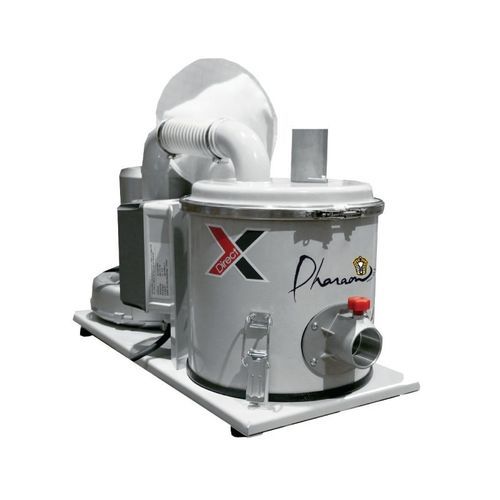

Bag dust collector DBF10

compactfine dust

Overview
The DBF10 is a three-phase industrial vacuum designed for direct extraction of dust, chips and particles at the source on production machines. More powerful than the DBF05, it provides increased suction while maintaining a compact, robust footprint ideal for OEM integrations and workshops with limited space.

Operation
The DBF10 is fitted with a three-phase 400 V side-channel blower rated 0.85 kW, ensuring continuous 24/7 operation. An integrated safety valve protects the motor by maintaining a stable vacuum level to ensure reliability and long service life.

Filtration

• Polyester bag filtration category M with PTFE coating for effective protection against fine dust.
• Filtration area: 2,000 cm².
• Filter diameter: 280 mm.

Construction and ergonomics

• Horizontal collection tank of 15 litres.
• Compact format and low noise level (70 dB(A)).
• Epoxy-painted steel construction, sturdy and suitable for demanding industrial environments.

Main features

• Suitable for continuous extraction on production machines (OEM integration).
• Power and airflow improved compared with the DBF05 model.
• System designed to limit clogging risk and facilitate use at the workstation.

Technical data / specifications

• Weight: 35
• Dimensions: 75 x 34 x 42h
• Max vacuum (mmH₂O): 2000
• Max airflow (m3/h): 150
• Noise level (dB): 70
• Filtration area (cm²): 2000
• Voltage (Volts): 400
• Power (W): 850
• Air inlet (mm): 50
• Tank: 15 litres
• Blower type: three-phase side-channel blower
• Filter: polyester bag category M with PTFE coating
