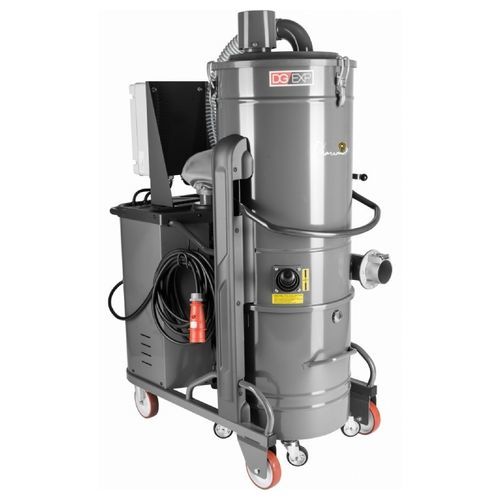

Industrial vacuum cleaner DG75

dryfine dustdust

Overview
Three-phase industrial vacuum cleaner (mobile) designed for high-volume extraction of fine dust and light debris. Built for continuous operation and compatible with centralized vacuum systems. Model DG75 with a three-phase motor and large filtration area.

Usage and applications
Suitable for industrial environments such as food processing, woodworking, textile manufacturing and general manufacturing plants. Designed for fine dust and small waste, and for integration with central extraction networks.

Main functional features

• Three-phase 7.5 kW motor cooled by a vacuum-limiting valve.
• Motor protection rating IP55.
• Magneto-thermal switch for motor protection.
• Integrated unclogging system (manual as standard; automatic pneumatic unclogging recommended for intensive use).
• Antistatic polyester star filter with large filtration area (49,000 cm²).
• Low-maintenance mechanical design for the three-phase motor.

Options and parts
The unit is available with multiple options and filtration/sealing accessories (examples: gaskets, hose clamps, tank seals) to adapt the vacuum to specific operational requirements.

Usage advice
To preserve suction efficiency and filtration performance, automatic pneumatic unclogging is recommended instead of manual unclogging, especially under continuous or heavy-duty operation.

Technical specifications

• Maximum vacuum (mmH2O): 4000
• Maximum flow (m3/h): 530
• Capacity (L): 100
• Sound level (dB): 76
• Filtration surface (cm2): 49,000
• Voltage (Volts): 400
• Power (W): 7,500
• Vacuum family: Industrial
