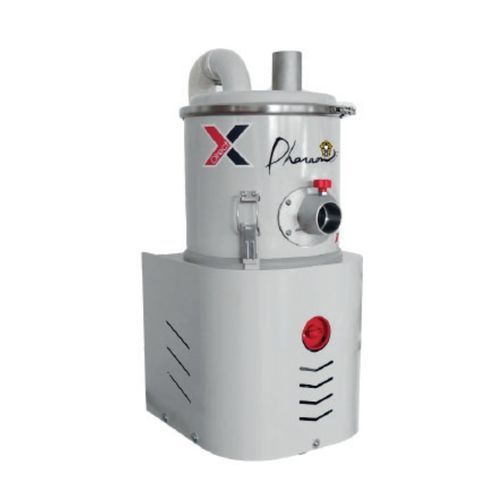

Industrial vacuum cleaner DBFV10

drychipdust

Overview
The DBFV10 is a compact vertical three-phase industrial vacuum unit designed for direct extraction of dust and chips at production machines. Its vertical, compact format facilitates OEM inline integration or workshop installation. Built for continuous 24/7 suction in industrial environments.

Main features

• Mechanical lever cleaning to maintain filter performance and extend filter life.
• Polyester M-class filter bag with PTFE treatment for efficient particle capture and durability.
• Compact vertical format, easy to integrate in OEM applications and workshop cells.
• 15 L collection hopper suitable for close-to-machine industrial use.

Detailed description
Equipped with a side-channel blower, three-phase 400 V, 0.85 kW, the DBFV10 delivers a maximum vacuum of 2000 mmH₂O and an airflow of 150 m³/h, offering higher performance than the DBFV05. An integrated safety valve protects the motor by regulating vacuum to ensure reliability and longevity. Filtration is provided by an M-class polyester bag treated with PTFE, offering a filtration area of 2,000 cm² and a filter diameter of 280 mm to effectively capture fine dust. The mechanical lever cleaning system preserves suction performance and prolongs filter media service life. The compact, robust epoxy-painted steel construction ensures durability under intensive use. Moderate noise level allows operation close to personnel.

Applications

• Continuous extraction on production machines (OEM integration).
• Capture of fine industrial dust and chips.
• Industrial environments requiring compact, continuous suction systems.

Technical specifications

• Model: DBFV10
• Blower: side-channel, three-phase 400 V
• Power: 0.85 kW (850 W)
• Max airflow: 150 m³/h
• Max vacuum: 2000 mmH₂O
• Filtration: polyester M-class bag with PTFE treatment
• Filtration area: 2,000 cm²
• Filter diameter: 280 mm
• Hopper: 15 L
• Dimensions (W x D x H): 50 x 33 x 73 cm
• Weight: 35 kg
• Noise level: 70 dB(A)
• Voltage: 400 V
• Air inlet: 50 mm
• Construction: epoxy-painted steel
• Additional features: integrated safety valve, mechanical lever cleaning, compact vertical format for OEM integration
