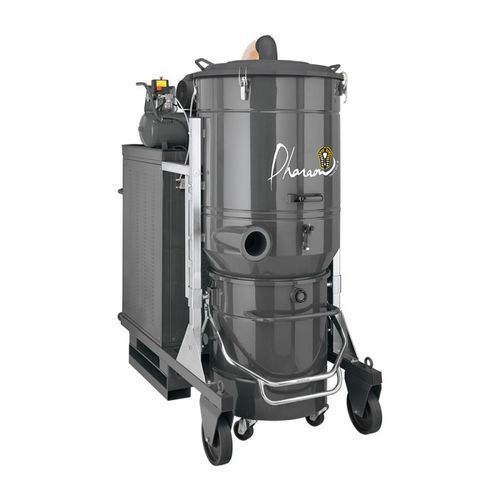

Industrial vacuum cleaner DG300SE

drydustthree-phase

Description
The DG300SE is a three-phase industrial vacuum designed for continuous suction of dust and light-to-heavy bulk waste in large volumes. It features a 220 L removable hopper on casters for simplified emptying and reduced maintenance. The unit is built on a robust chassis for stability and mobility on uneven floors and is equipped with a high-efficiency cast-aluminum suction unit sized for intensive service. The polyester filter provides a very large filtering area (120,000 cm²) and the deblocking is automated and timed via a pneumatic cylinder.

Main features

• High negative pressure (max 5000 mmH₂O)
• Designed for continuous intensive use
• Automated timed deblocking by pneumatic cylinder
• Very large filtering area (polyester filter)
• Removable hopper on casters (220 L capacity)

Compatible accessories

• Seal for filter support ring D780 - GI.0052.0000
• Clamp for filter D780 - SL.0478.0000
• Hopper gasket 10x22 sold by the meter - GI.0142.0000

Technical specifications

• Max vacuum (mmH₂O): 5000
• Max flow (m3/h): 1100
• Capacity (L): 220
• Sound level (dB): 77
• Filtering area (cm²): 120000
• Voltage (Volts): 400
• Power (W): 20000
• Vacuum family: Industrial
• Dimensions (L x W x H): 220 x 220 x 92 cm
• Weight (kg): 760
• Filter: polyester
• Deblocking system: automated timed pneumatic cylinder
• Hopper: removable on casters
