Industrial vacuum cleaner DG300HD
drywetdust

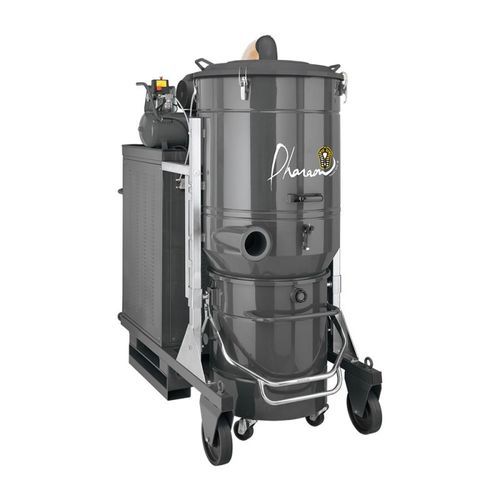

Industrial vacuum cleaner - DG300HD - Pharaon - dry / wet / dust
Industrial vacuum cleaner - DG300HD - Pharaon - dry / wet / dust
Industrial vacuum cleaner - DG300HD - Pharaon - dry / wet / dust - image - 2
Industrial vacuum cleaner - DG300HD - Pharaon - dry / wet / dust - image - 3
Add to favorites
Compare this product
Go to the Pharaon website for more information

Characteristics

Domain
industrial
Type
dry, wet
Substance vacuumed
dust, liquids, hazardous dust
Power source
electric, three-phase
Configuration
wheel-mounted
Other characteristics
with self-cleaning filter, cyclone, heavy-duty
Power

Min.: 25 kW
(33.99 hp)

Max.: 25 kW
(33.99 hp)

Capacity

Min.: 0.22 m³
(7.7692 ft³)

Max.: 0.22 m³
(7.7692 ft³)

Air flow

Min.: 2,050 m³/h
(72,395.1 ft³/h)

Max.: 2,050 m³/h
(72,395.1 ft³/h)

Vacuum

Min.: 392 mbar
(6 psi)

Max.: 392 mbar
(6 psi)

Noise level

Min.: 78 dB

Max.: 78 dB

Weight

Min.: 805 kg
(1,774.72 lb)

Max.: 805 kg
(1,774.72 lb)

Description

Summary
The DG300HD is a high-vacuum industrial vacuum designed for heavy-duty, continuous operation. It features automatic filter cleaning to maintain optimal suction and a large 220 L collection tank.

Details
  • Three-phase motor cooled with two vacuum-limiting valves and a safety filter.
  • Ingress protection IP65 and magnetothermic switch.
  • Automatic cleaning of the filter medium via an automatic shaking device actuated by an electro-pneumatic cylinder.
  • On-board compressor mounted at the rear of the DG300 to supply the filter cleaning system.
  • Adjustment of cleaning cycle frequency and duration via timers located inside the electrical cabinet.
  • 220 L collection tank mounted on a quick-release trolley for easy emptying.
  • Cyclonic waste inlet to retain heavy materials and reduce load on the filter.
  • Engineered for continuous, intensive industrial use.

Key points
  • Suitable for industrial environments.
  • High flow, high power and high vacuum capability.
  • Designed for continuous operation.
  • High suction efficiency.

Applications / Materials collected
  • Liquids
  • Crystalline silica
  • Rubble
  • Dusts (including industrial dusts)

Compatible accessories (shown on the sheet)
  • Seal for filter support ring D780 - GI.0052.0000
  • Clamp for filter D780 - SL.0478.0000
  • Tank seal 10x22 sold by the meter - GI.0140.0000

Characteristics / technical specifications
  • Max vacuum (mmH2O): 4000
  • Max flow (m3/h): 2050
  • Capacity (Lt): 220
  • Sound level (dB): 78
  • Filtering surface (cm²): 120000
  • Voltage (Volts): 400
  • Power (W): 25000
  • Vacuum family: Industrial
  • Motor: three-phase
  • Ingress protection: IP65
  • Filter cleaning: automatic shaking of the filter medium by electro-pneumatic cylinder (on-board compressor at rear)
  • Tank capacity: 220 L (tank mounted on quick-release trolley)
  • Weight (kg): 805
