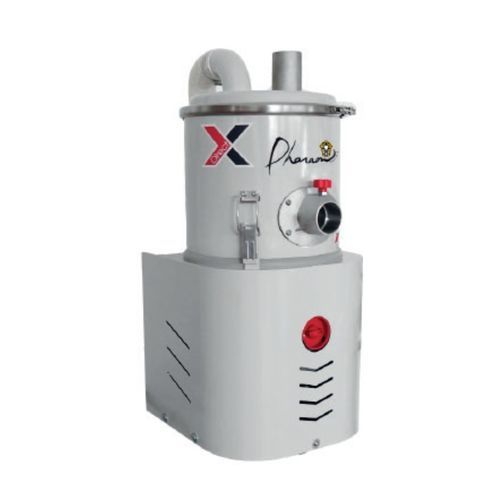

Industrial vacuum cleaner DBFV05

drychipdust

Presentation
The DBFV05 is a vertical, compact industrial three-phase vacuum unit designed for direct extraction of dust and chips at the source on production machines. It integrates easily into constrained environments (OEM lines, workshops) and is suitable for continuous industrial use.

Motorisation and safety
The unit is equipped with a three-phase side-channel blower 400 V, delivering 0.4 kW (400 W). An integrated safety valve protects the motor by regulating the vacuum and preventing overload, making the unit suitable for 24/7 operation with reduced maintenance.

Filtration
Polyester bag filtration, category M, with PTFE treatment. Filter surface: 2000 cm². Filter diameter: 280 mm. The system includes mechanical lever cleaning to maintain performance and limit dust dispersion.

Tank, structure and use
15-litre tank. Epoxy-painted steel structure, robust and designed to withstand demanding industrial environments. Intended for continuous extraction close to operators without excessive nuisance thanks to a controlled noise level.

Main advantages

• Direct extraction of dust and chips at the source
• Vertical, compact design for easy integration
• Mechanical lever cleaning to maintain performance
• Continuous 24/7 operation with low maintenance
• Polyester M filter with PTFE treatment effective for fine dust
• Epoxy-painted steel structure, durable in industrial environments

Characteristics / technical specifications

• Model: DBFV05
• Type: fixed three-phase vacuum unit, vertical, compact
• Motor power: 0.4 kW (400 W)
• Voltage: 400 V (three-phase)
• Max flow: 100 m3/h
• Max vacuum: 1500 mmH2O
• Sound level: 65 dB(A)
• Filter surface: 2000 cm²
• Filtration: polyester bag category M, PTFE treated (filter diameter 280 mm)
• Cleaning: mechanical lever
• Tank: 15 litres
• Air inlet: 50 mm
• Dimensions (L x W x H): 50 x 33 x 73 cm
• Weight: 30 kg
• Materials: epoxy-painted steel structure
• Use: direct extraction on machines, continuous 24/7 operation
