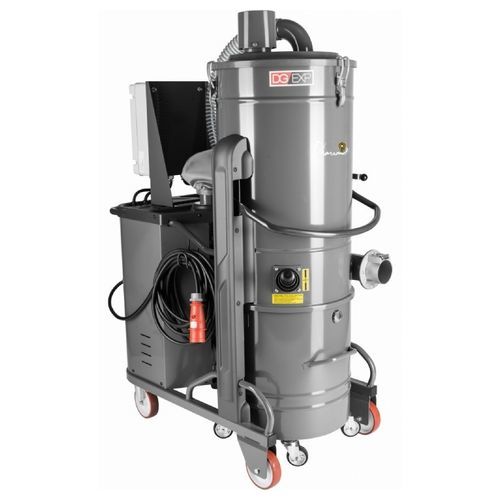

Industrial vacuum cleaner DG75AF

drydustfine dust

Overview
The DG75AF is a high-flow three-phase industrial dust vacuum designed for fine dust extraction in industrial environments and silos (food industry, woodworking, paper, etc.). It integrates into a centralized suction network and is suitable for continuous production use.

Detailed description
The DG75AF is fitted with a powerful three-phase 7.5 kW motor, mounted in a robust epoxy-painted steel construction. The motor has IP55 protection and is designed for maintenance-free 24/7 operation. The vacuum is suitable for extracting large quantities of fine dust and for demanding industrial applications.

Features and key points

• Integration possible into a centralized suction network (ideal for silos and food industry).
• Robust epoxy-painted steel construction for industrial use.
• Three-phase 7.5 kW motor, IP55 protection, designed for continuous maintenance-free operation.
• 100-litre container on casters facilitating emptying by operators.
• Durable swivel wheels with brake for mobility and safety.
• Large filter area with manual shake-off system operated by a handle.
• Pharaon supplies numerous accessories and kits adapted to suction needs.

Recommended materials and applications

• Fine dust
• Food industry
• Woodworking industry
• Construction debris / industrial dust

Specifications / technical data

• Max vacuum (mmH2O): 3200
• Max flow (m3/h): 700
• Capacity (L): 100
• Sound level (dB): 76
• Filter area (cm²): 49000
• Voltage (V): 400
• Power (W): 7500
• Motor protection: IP55
• Approx. weight (kg): 180
• Vacuum family: Industrial
