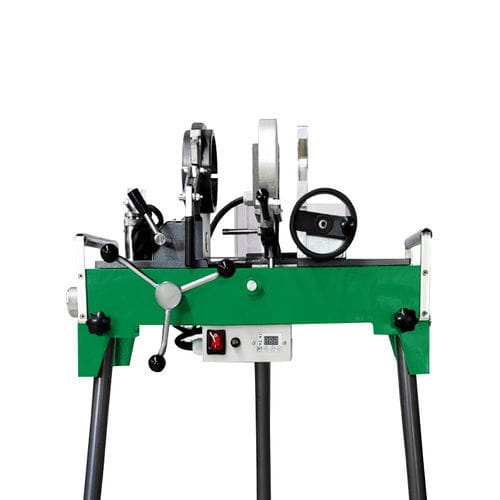

Polymer electric fusion machine Prisma110

for industrial applications

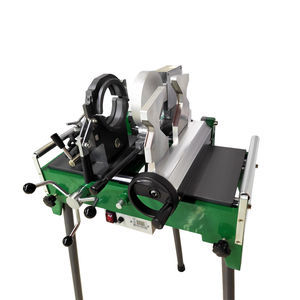

The Prisma110 bench socket fusion machine is designed for welding HDPE, PPR, PPH, PB and PVDF pipes with diameters from 25 to 110 mm. It delivers precise, repeatable mechanical operation to standardize weld depth and improve joint quality.

Features

• Precise weld-depth gauging for consistent joints
• Accurate fit-depth control for repeatable results
• Mechanical operation that standardizes the welding process
• Robust design and user-friendly interface for field and workshop use

Applications

• Potable water distribution systems
• Drainage and sewer systems
• Industrial fluid transport and process piping
• Irrigation and infrastructure projects

Packaging & certifications

• Secure packaging: carton 800 × 600 × 400 mm
• Warranty: 2 years; CE certification and technical support available

Technical specifications

• Model: Prisma110
• Fusing pipe scope: 25 mm – 110 mm (1"–4" IPS)
• Rated voltage: AC 220/230 V, 50/60 Hz
• Power: 1200 W
• Working temperature: 200 ~ 279 ℃ ±1%
• Ambient temperature: -5 ℃ ~ 45 ℃
• Applicable materials: PP-R, PE (HDPE), PP, PB, PVDF
• Net weight: 87.5 kg
• Carton size: 800 × 600 × 400 mm
