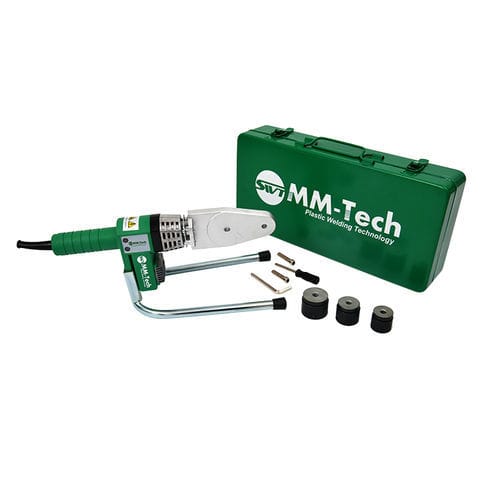

Polymer electric fusion machine THJ-32A

for industrial applications

The THJ-32A socket fusion welder is a compact, lightweight tool designed for joining PPR, PE and PB pipes used in hot and cold water systems. It provides the controls and fittings required for on-site pipe fusion operations.

Applications

• Plumbing installation and maintenance
• Hot water distribution systems
• Cold water distribution systems

Key product highlights

• Compact, lightweight design for transport and handling
• Nylon rubber handle for an ergonomic grip
• Aluminum heater plate (up to 19 mm thickness) with optional Teflon surface
• LED working light and digital temperature display
• ABS housing with reinforced nylon handle; molded aluminum insulation cover; magnesium cooling fins
• VDE copper conductor cable (up to 3 m) with support for international plugs and protective plug cover
• U-type machine support, special table clamps, stainless steel spanner and screws
• Steel packing box (1.0 mm) with OEM color/logo options

Socket fusion instruction (process summary)

• 1. Fusion preparation
• 2. Cut the pipe
• 3. Clean the pipe
• 4. Measure fusion depth
• 5. Heating
• 6. Connect and cool

Characteristics / technical specifications

• Model: THJ-32A
• Rated voltage: 110V / 220V
• Rated frequency: 50Hz / 60Hz
• Rated power: 600W
• Working temperature: 260°C
• Temperature tolerance: ≤5°C
• Warning temperature: 295°C
• Welding sizes: 20 mm, 25 mm, 32 mm
• Suitable materials: PPR / PE / PB
• Net weight: 1.6 kg
• Pieces per carton: 5 pcs
• Gross weight (carton): 21.6 kg
• Dimensions (mm): 440 × 270 × 540
