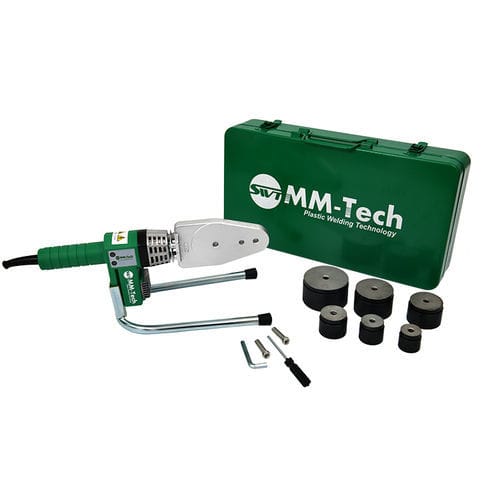

Polymer electric fusion machine THJ-63A

for industrial applicationsresistance

The THJ-63A is a compact, lightweight socket fusion welder designed for plumbers and hot/cold water supply systems, compatible with PP-R, PE and PB pipes. MM-Tech supplies the product with a 2-year warranty.

Applications

• Plumbing installation and repair
• Hot water supply systems
• Cold water supply systems

Main product features

• Compact, lightweight design for easy maneuverability on site
• Nylon rubber handle for comfortable, ergonomic grip
• Durable aluminum heater plate (thickness up to 19 mm); optional Daikin Teflon surface
• Internal heating element available for 110V and 220V
• ABS body with reinforced nylon handle; molded aluminum insulation cover; magnesium cooling fins
• LED work light and digital display for temperature and status
• Robust U-type machine support with special table clamps for stable fixation
• Stainless steel spanner and screws included
• VDE copper wire with rubber-sheathed cable; cable length up to 3 m; supports international plugs with protective plug cover
• Steel packing box (thickness 1.0 mm); OEM options for color paint and logo (engraving/sticker)
• Manufacturer warranty: 2 years

Socket fusion instruction (overview)

• 1. Fusion preparation
• 2. Cutting the pipe
• 3. Cleaning the pipe
• 4. Measuring fusion depth
• 5. Heating
• 6. Connecting and cooling

Technical specifications

• Model: THJ-63A
• Rated Voltage: 110V / 220V
• Rated Frequency: 50Hz / 60Hz
• Rated Power: 800W
• Working Temperature: 260°C
• Temperature Tolerance: ≤5°C
• Warning Temperature: 295°C
• Welding Sizes: 20, 25, 32, 40, 50, 63 mm
• Suitable Materials: PP-R / PE / PB
• Net Weight: 1.8 kgs
• Pieces per Carton: 2 pcs
• Gross Weight: 15.2 kgs
• Dimensions (mm): 460 × 270 × 270
