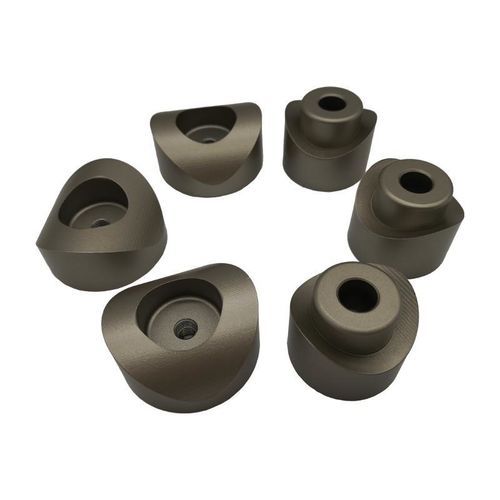

Pipe socket

waterproof

Saddle welding socket for cylindrical pipes, designed to be welded directly onto the pipe surface to create welded, leak‑tight branch connections. Primary range fits pipes with outer diameters from 40 mm to 125 mm; additional size combinations up to 315 mm are listed below. Suited for construction, oil & gas, petrochemical and industrial manufacturing applications where welded branch connections are required.

Applications

• Construction piping systems
• Oil & gas pipelines and facilities
• Petrochemical plants
• Industrial and manufacturing piping assemblies

Sizes

• 40/20 — 40/25 — 63/32
• 50/20 — 50/25 — 75/32
• 75/20 — 75/25 — 90/32
• 90/20 — 90/25 — 110/32
• 110/20 — 110/25 — 125/32
• 125/20 — 125/25 — 160/32
• 160/20 — 160/25 — 200/32
• 90/40 — 110/50 — 250/32
• 110/40 — 125/50 — 125/63
• 125/40 — 160/50 — 160/63
• 160/40 — 200/50 — 200/63
• 200/40 — 250/50 — 250/63
• 250/40 — 200/90 — 315/63
• 160/75 — 250/90 — 200/110
• 200/75 — 315/90 — 250/110
• 250/75 — (blank) — 315/110
• 315/75 — (blank) — (blank)

Characteristics / technical specifications

• Pipe size range: primarily fits pipe outer diameters from 40 mm to 125 mm; extended combinations available up to 315 mm (see sizes list).
• Connection method: saddle welding — direct welding of the socket onto the pipe surface to form the branch connection.
• Primary uses: construction, oil & gas, petrochemical, industrial manufacturing piping systems requiring welded branch connections.
• Performance: produces strong, leak‑tight joints designed to withstand environmental and operational stresses typical of industrial installations.
• Availability: supplied in a wide range of size combinations to match various pipe dimensions and installation requirements; material and certification options depend on the selected variant.
