Manual positioner SST63

linear1-axis

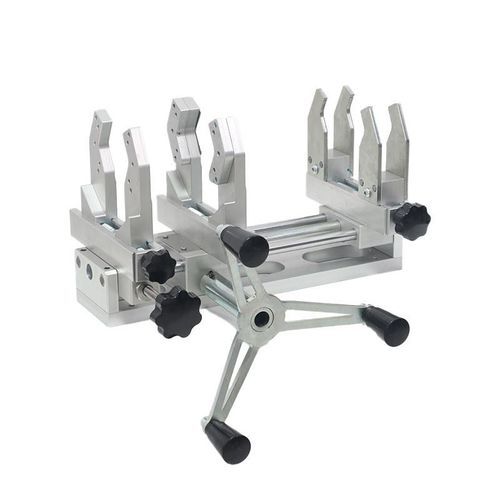

The SST-63 suspending tool is an adjustable suspension jig designed to support and position socket fusion welding machines for PPR, PVDF and PE pipes. It provides a stable platform to ensure precise alignment and repeatable welds, and can be customized to specific job requirements.

Key features

• Adjustable jigs covering a wide diameter range: 20–63 mm
• Stable platform for socket fusion welding machine support and positioning
• Customizable (logo and color options) to adapt to site or OEM requirements
• Safe, reliable design for consistent suspension and alignment
• Manufacturer warranty: 2-year quality warranty from MM-Tech

Applications

• Support and suspension for socket fusion welding machines
• Plumbing and piping installations — hot and cold water supply systems

Technical specifications

• Model: SST63
• Connection type: socket fusion
• Fix range: 20–63 mm
• Applicable materials: PPR, PVDF, PE pipes
• Weight: 8 kg
• Dimensions (L × W × H): 43 × 41 × 58 cm
• Customization: supports logo and color personalization
• Warranty: 2-year quality warranty (MM-Tech)
