Polymer electric fusion machine ZRJQ-63for industrial applications
Add to favorites
Compare this product
Characteristics
- Processed material
- polymer
- Application
- for industrial applications
- Maximum temperature
295 °C
(563 °F)
Description

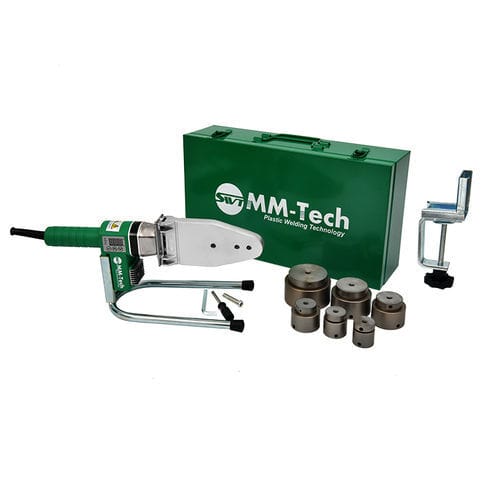

The ZRJQ-63 is a portable socket-fusion welder for PPR/PE/PB pipes (20–63 mm) with a digital display, Teflon-coated heating elements and die heads for consistent joints.
Key features
Applications
Socket fusion instruction
Technical specifications
Key features
- Teflon-coated heating plates and die heads to reduce sticking and simplify cleaning
- Aluminum heater plate, thickness up to 19 mm (optional Teflon surface)
- ABS body with nylon rubber-covered handle for ergonomic grip
- Digital display and LED work light for precise temperature control and visibility
- Aluminum molded insulation cover and magnesium cooling fins for thermal management
- VDE-certified copper-core cable with rubber sheath, up to 3 m; support for regional plug types and plug protective cover
- Includes heating sockets, repair sockets and saddle sockets; robust U-type machine support with special table clamps
- Stainless steel spanner and screws supplied
- Compliant with DVS2208-1 socket fusion process standard
Applications
- Professional plumbing installations
- Hot water supply systems
- Cold water supply systems
Socket fusion instruction
- 1. Fusion preparation
- 2. Cutting the pipe
- 3. Cleaning the pipe
- 4. Measure fusion depth
- 5. Heating
- 6. Joining and cooling
Technical specifications
- Model: ZRJQ-63
- Rated voltage: 110V / 220V
- Rated frequency: 50Hz / 60Hz
- Rated power: 800W
- Working temperature: 260 °C
- Temperature tolerance: ≤5 °C
- Warning temperature: 295 °C
- Welding sizes: 20, 25, 32, 40, 50, 63 mm
- Suitable materials: PPR / PE / PB
- Net weight: 1.8 kg
- Pieces per carton: 2 pcs
- Gross weight: 17.2 kg
- Dimensions (mm): 460 × 270 × 270
