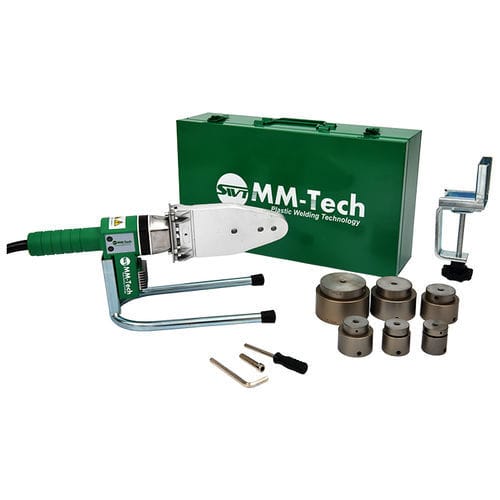

Polymer electric fusion machine RJQ-63

for industrial applications

Overview
The RJQ-63 is a portable socket-fusion welder for PPR, PE and PB pipes (20–63 mm), designed for plumbing and hot/cold water supply installations. It features Teflon-coated heating elements and interchangeable die heads for controlled heating and consistent socket joints.

Key features

• Teflon-coated heating elements and die heads (Daikin option) to reduce sticking and enable repeatable heating profiles
• Aluminum heating plate up to 19 mm thickness, Teflon surface optional
• Internal heating element options for 110 V and 220 V operation
• Ergonomic nylon/rubber handle (ABS + reinforced nylon)
• LED work light and digital temperature display
• Aluminum-molded insulation cover and magnesium cooling fins for thermal management
• U-type machine support and iron table clamp for stable mounting during welding
• Supplied accessories: stainless-steel spanner and screws; heating, repair and saddle sockets included
• VDE copper cable with rubber sheath (up to 3 m) supporting international plugs and protective plug cover
• Steel packing box (1.0 mm) for secure delivery; OEM color, logo and labeling supported

Applications

• Plumbing installation and repair
• Hot water supply pipe welding
• Cold water supply pipe welding

Technical specifications

• Model: RJQ-63
• Rated voltage: 110 V / 220 V
• Rated frequency: 50 Hz / 60 Hz
• Rated power: 800 W
• Working temperature: 260 °C
• Temperature tolerance: ≤ 5 °C
• Warning temperature: 295 °C
• Welding sizes: 20, 25, 32, 40, 50, 63 mm
• Suitable materials: PP-R / PE / PB
• Compliance: DVS2208-1
• Net weight: 1.8 kg
• Units per carton: 2 pcs
• Gross weight: 17.2 kg
• Packaging dimensions (mm): 460 × 270 × 270
• Heating plate: aluminum, up to 19 mm thickness
