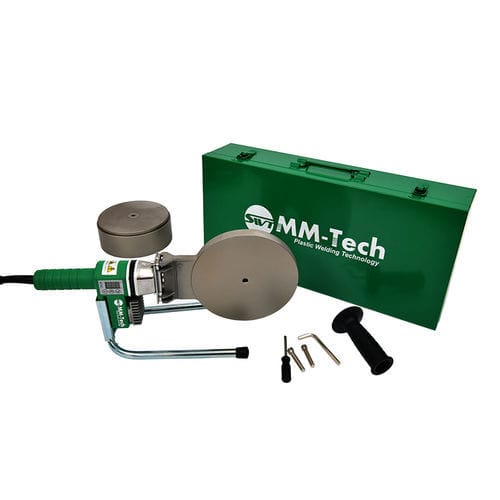

Polymer electric fusion machine ZRJQ-160

The ZRJQ-160 is a socket-fusion PPR welding machine with digital display, designed for plumbers and hot/cold water supply systems. CE certification and a 2-year quality warranty are provided.

Applications

• Plumbing installations
• Hot water supply systems
• Cold water supply systems

Product features

• Aluminum heater plate (plate thickness up to 19 mm); optional Teflon surface
• Teflon-coated heating elements and die heads
• ABS components and nylon/nylon-rubber handle for comfortable grip
• Digital display and LED work light for precise control
• Aluminum moulded insulation cover and magnesium cooling fins for heat management
• U-type machine support and special table clamps for stable operation
• Stainless steel spanner and screws included; heating sockets, repair sockets and saddle sockets supplied
• VDE copper wire with rubber-covered cable (3 m), supports worldwide plugs; plug cover protection
• Steel packing box (1.0 mm) with option for OEM color paint and logo

Technical specifications

• Model: ZRJQ-160
• Rated Voltage: 110V / 220V
• Rated Frequency: 50Hz / 60Hz
• Rated Power: 1800W
• Working Temperature: 260 °C
• Temperature Tolerance: ≤ 5 °C
• Warning Temperature: 295 °C
• Welding Sizes: 75, 90, 110, 125, 140, 160 mm
• Suitable Material: PP-R / PE / PB
• Net Weight: 4.0 kg
• Pieces per Carton: 2 pcs
• Gross Weight (per carton): 26 kg
• Dimensions (mm): 460 × 270 × 270
