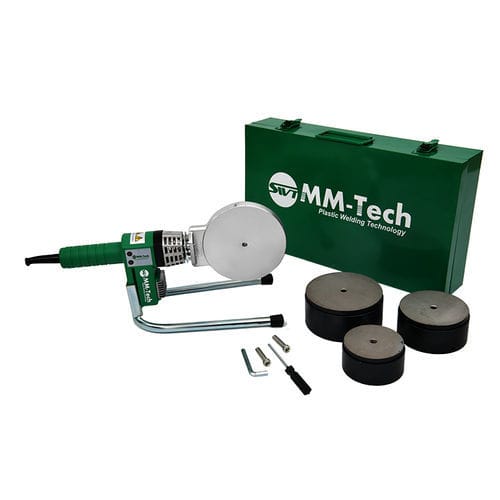

Polymer electric fusion machine THJ-110A

for industrial applications

The THJ-110A is a compact, lightweight socket fusion welder engineered for plumbers and installers to perform fast, consistent welds on PPR, PE and PB pipes used in hot and cold water systems.

Applications

• Plumbing and pipe installation for hot and cold water distribution.
• Residential and commercial plumbing systems requiring PPR/PE/PB joints.

Design and usability

• Compact, lightweight body for easy handling on site.
• Nylon-rubber ergonomic handle for comfortable grip and controlled operation.
• Aluminum heater plate (up to 19 mm thickness) with optional Teflon surface.
• LED work light and digital display available on relevant models for temperature control.
• U-type machine support, special table clamps and stainless-steel tools for stable mounting.
• VDE copper wire with rubber-covered cable (up to 3 m) and worldwide plug options.
• Steel packaging box (1.0 mm) and OEM support for color and logo customization.

Socket fusion instruction (process overview)

• 1. Fusion preparation — prepare heater and fittings for welding.
• 2. Cutting the pipe — cut pipe square to length.
• 3. Cleaning the pipe — remove burrs and contaminants.
• 4. Measure fusion depth — verify insertion depth for fittings.
• 5. Heating — heat both pipe end and fitting to correct temperature.
• 6. Connecting and cooling — join heated parts and allow to cool undisturbed to form the weld.

Specifications

• Model: THJ-110A
• Rated Voltage: 110V / 220V
• Rated Frequency: 50Hz / 60Hz
• Rated Power: 1200W
• Working Temperature: 260 °C
• Temperature Tolerance: ≤5 °C
• Warning Temperature: 295 °C
• Welding Sizes: 75 mm, 90 mm, 110 mm
• Suitable Material: PPR / PE / PB
• Net Weight: 2.0 kg
• Pieces per Carton: 2 pcs
• Gross Weight (per carton): 20.8 kg
• Dimensions (mm): 460 × 270 × 270
• Warranty: 2 years
