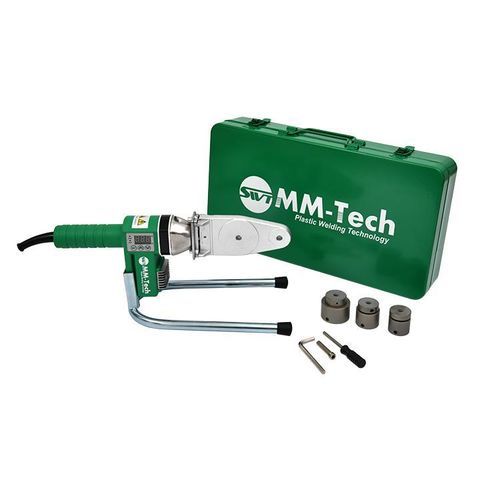

Polymer electric fusion machine ZRJQ-32

for industrial applicationsresistance

The ZRJQ-32 is a compact PPR socket-fusion welding machine with digital display, engineered for installation and repair of PPR/PE/PB pipes in hot and cold water plumbing. It delivers stable clamping and precise temperature control with selectable heating elements for common global voltages.

Applications

• Plumbing installation and maintenance
• Hot water supply systems
• Cold water supply systems
• Domestic and commercial pipe jointing

Main features

• Teflon-coated heating element and die head for temperature resistance and easy cleaning
• Compliant with DVS2208-1 for socket-fusion welding
• Ergonomic nylon-rubber handle for secure grip
• Special iron desk clamp and strong U-type support for stable clamping during welding
• Aluminium heating plate (up to 19 mm thickness) with optional Teflon surface
• LED work light and digital display for clear temperature monitoring
• Aluminium moulded insulation cover and magnesium cooling fins for thermal management
• VDE copper cable with rubber sheath (up to 3 m) supporting worldwide plug options and protective plug cover

Accessories & included parts

• Special table clamp (iron)
• Stainless steel spanner and screw
• Wiring and plug options for 110V / 220V

Certifications & warranty

• Standard: DVS2208-1
• Certification: CE
• Warranty: 2 years (manufacturer)

Technical specifications

• Model: ZRJQ-32
• Rated voltage: 110V / 220V
• Rated frequency: 50Hz / 60Hz
• Rated power: 600W
• Operating temperature: 260°C
• Temperature tolerance: ≤5°C
• Alarm temperature: 295°C
• Welding sizes supported: 20 mm, 25 mm, 32 mm
• Compatible materials: PP-R / PE / PB
• Gross weight (unit): 1.6 kg
• Quantity per carton: 5 pcs
• Carton weight (gross): 23.6 kg
• Dimensions (mm): 440 × 270 × 540
