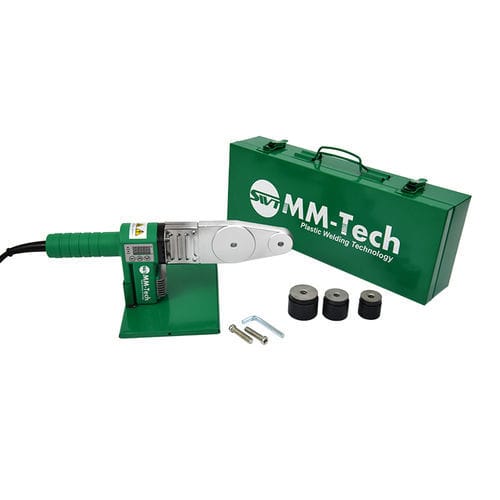

Polymer electric fusion machine ZTHJ-32E

The ZTHJ-32E is a compact, lightweight socket fusion welder designed for plumbers and hot/cold water supply installations. It provides a stable square base, digital temperature display and consistent heating performance for precise, repeatable joints.

Key highlights:

• Compact, portable design with a stable square base for improved balance during operation.
• Digital display for clear temperature and operating information, simplifying use on site.
• High-quality aluminum heating plate (option: Daikin Teflon surface) with thickness up to 19 mm for even heat transfer.
• Suitable for PP-R (PPR), PE and PB pipe materials used in hot and cold water supply systems.
• Integrated LED working light, molded aluminum insulation cover, magnesium cooling fins and ergonomic ABS + nylon handle.
• Supplied with long (3 m) VDE copper-wired cable; supports worldwide plug options and protective plug cover.
• Manufacturer support: 2-year quality warranty and free spare parts according to warranty terms.

Technical / data sheet (extracted):

• Model: ZTHJ-32E
• Pipe sizes (mm): 20, 25, 32
• Rated voltage: A.C. 220V
• Frequency: 50/60 Hz
• Power: 650 W
• Working temperature: 260℃ ±3%
• Environment temperature: -5 to 45℃
• Applicable materials: PP-R, PE, PB
• Net weight (single unit): 1.6 kg
• Pieces per carton: 10
• Carton size (mm): 450 x 400 x 500
• Weight per carton: 35 kg

Product features (additional):

• Strong U-type machine support and special table clamps for secure mounting.
• Stainless steel spanner and screws included.
• Heating sockets, repair sockets and saddle sockets provided; sizes compatible with DVS and ASTM standards.
• Optional internal heating element voltage: 110V or 220V.

Applications:

• Plumber installations and on-site pipe joining
• Hot water supply piping
• Cold water supply piping

Specifications:

• Product type: Socket fusion welder for small-diameter PPR/PE/PB pipes
• Model designation: ZTHJ-32E
• Operating electrical spec: 220V AC, 50/60 Hz, 650 W (110V heating element optional)
• Working temperature accuracy: 260℃ ±3%
• Supported pipe diameters: 20 mm, 25 mm, 32 mm
• Construction: Aluminum heater plate (up to 19 mm), optional Teflon coating; ABS + nylon handle; aluminum molded insulation cover; magnesium cooling fins
• Cable & plug: 3 m VDE copper wire; support for worldwide plug types and protective plug cover
• Warranty & support: 2-year quality warranty; spare parts supply per manufacturer terms
