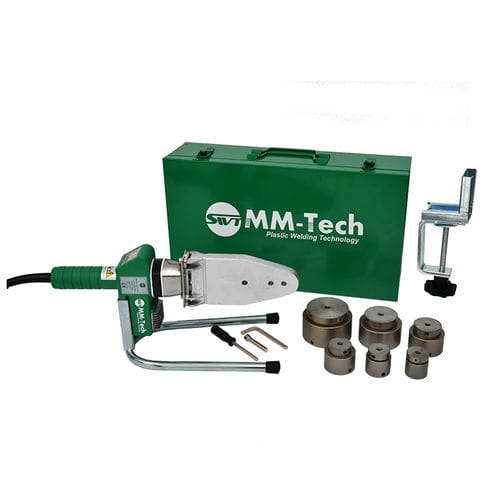

Polymer electric fusion machine ZRJQ-63T

for industrial applicationsresistance

The ZRJQ-63T is a socket fusion welder for PPR/PE/PB pipes, covering welding sizes from 20 to 63 mm and equipped with a digital temperature display for precise process control.

Main features

• Teflon-coated (PTFE) heating elements and die heads to reduce sticking during fusion.
• Aluminum heater plate (up to 19 mm thickness); Teflon surface optional.
• Internal heating element available for 110V or 220V operation.
• ABS + nylon rubber handle for grip; LED work light and digital display for clear readout.
• Aluminum moulded insulation cover and magnesium cooling fins for thermal management.
• VDE copper conductor with rubber-sheathed cable (3 m); supports international plugs and includes plug cover.
• U-type machine support and table clamps included; stainless steel spanner and screws supplied.
• Heating sockets, repair sockets and saddle sockets supplied; sizes support DVS and ASTM standards.
• Steel packing box (1.0 mm) with option for OEM paint and logo engraving/stickers.

Applications

• Plumbing installations and repairs
• Hot and cold water supply systems
• On-site pipe joining for commercial and residential projects

Technical specifications

• Model: ZRJQ-63T
• Rated voltage: 110V / 220V
• Rated frequency: 50Hz / 60Hz
• Rated power: 800W
• Working temperature: 260 °C
• Temperature tolerance: ≤ 5 °C
• Warning temperature: 295 °C
• Welding sizes: 20 / 25 / 32 / 40 / 50 / 63 mm
• Suitable materials: PPR / PE / PB
• Net weight: 1.8 kg
• Pieces per carton: 2 pcs
• Gross weight (per carton): 17.2 kg
• Dimensions (mm): 460 × 270 × 270
