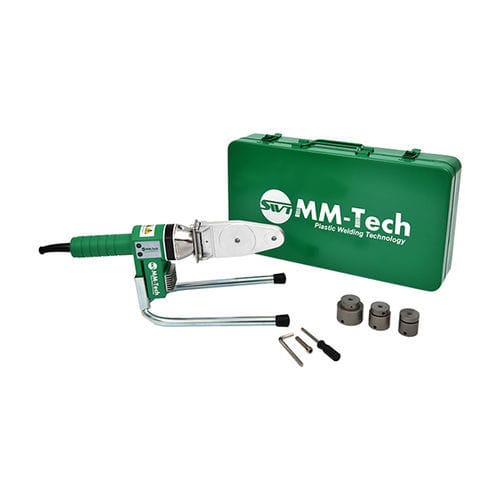

Polymer electric fusion machine RJQ-32

for industrial applications

The RJQ-32 is a compact socket-fusion welding machine for plumbers and installers, designed to weld 20, 25 and 32 mm PPR/PE/PB pipes. It features Teflon-coated heating surfaces, ergonomic handling and bench mounting options for onsite and workshop work.

Overview

• Teflon-surfaced heating element and die heads for reduced sticking and extended service life.
• Compliant with DVS2208-1 standard for socket fusion equipment.
• Ergonomic nylon-rubber handle and dedicated iron table clamp for stable operation.
• Available with 110V or 220V heating element; LED work light and digital temperature display.

Applications

• Professional plumbing installations (hot and cold water supply).
• Onsite pipe assembly and repair in residential and commercial projects.

Product features

• Thick aluminium heater plate (up to 19 mm) with optional Teflon coating.
• ABS + strong nylon handle; magnesium cooling fins and aluminium-moulded insulation cover.
• Stable U-type machine support, special table clamps, stainless steel spanner and screws included.
• VDE copper wire with rubber-covered cable (up to 3 m), international plug options and protective plug cover.
• Steel packing box (1.0 mm); OEM colour and logo engraving or sticker supported.

Technical specifications

• Model: RJQ-32
• Rated Voltage: 110V / 220V
• Rated Frequency: 50Hz / 60Hz
• Rated Power: 600W
• Operating Temperature: 260 °C
• Temperature Tolerance: ≤5 °C
• Alarm Temperature: 295 °C
• Welding Sizes: 20 / 25 / 32 mm
• Compatible Materials: PP-R / PE / PB
• Gross Weight: 1.6 kgs
• Net Weight: 23.6 kgs
• Quantity per Carton: 5 pcs
• Dimensions (mm): 440 × 270 × 540
