Polymer electric fusion machine ZTHJ-63E

for industrial applications

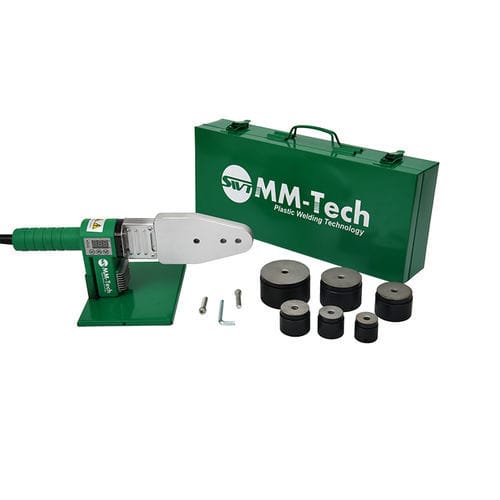

The ZTHJ-63E is a portable socket fusion welder with digital display, designed for joining PPR, PE and PB pipes used in plumbing for hot and cold water systems. It combines a square stable base, an aluminum heating plate and a lightweight body for on-site use.

Applications

• Plumbing installations
• Hot water supply systems
• Cold water supply systems

Key features

• Digital display for temperature control and monitoring
• Square base for improved stability during welding
• Aluminum heating plate (thickness up to 19 mm); optional Teflon (Daikin) surface
• Portable, lightweight design with ABS + nylon handle
• Integrated LED work light and digital screen
• Aluminum moulded insulation cover and magnesium cooling fin
• U-type machine support and special table clamps; stainless steel spanner and screws included
• VDE copper wire with rubber sheath; 3 m cable; supports worldwide plug options and plug protective cover
• Heating sockets, repair sockets and saddle sockets supplied
• Warranty/services: 2-year quality warranty; free spare parts provided; OEM options for color, model and logo

Socket fusion instruction (steps)

• 1. Fusion preparation
• 2. Cut the pipe to length
• 3. Clean and deburr the pipe
• 4. Measure fusion depth
• 5. Heating with the correct socket and plate
• 6. Join parts and allow to cool

Technical specifications

• Model: ZTHJ-63E
• Pipe sizes (mm): 20, 25, 32
• Rated voltage: A.C. 220 V (110 V optional)
• Frequency: 50/60 Hz
• Power: 800 W
• Working temperature: 260℃ ±3%
• Ambient temperature: -5℃ to 45℃
• Applicable materials: PP-R, PE, PB
• Net weight: 1.6 kg
• Pcs per carton: 10
• Carton size (mm): 450 x 400 x 500
• Weight per carton: 39 kg
• Heating plate: aluminum, thickness up to 19 mm; Teflon surface optional
• Internal heating element: 110 V and 220 V options
• Handle: ABS + reinforced nylon
• Cooling fin material: magnesium
• Cable: VDE copper wire with rubber cover, 3 m; supports international plugs
