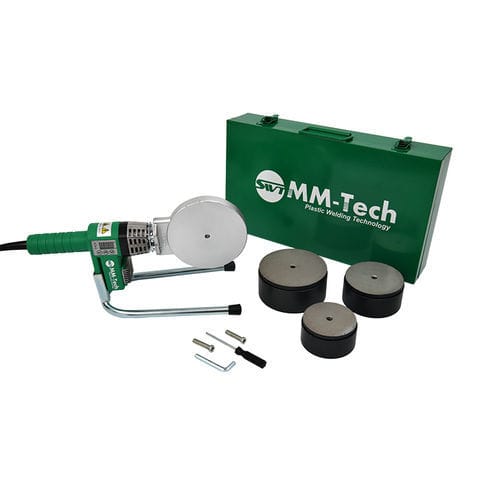

Polymer electric fusion machine ZTHJ-110A

for industrial applications

Description
The ZTHJ-110A is a compact, lightweight socket fusion welding machine with a digital display designed for plumbers and hot/cold water supply applications. It is engineered for welding PPR, PE and PB pipes and comes with a 2-year warranty.

Key features

• Compact and lightweight design for easy maneuverability.
• Nylon rubber handle for comfortable grip and ergonomic operation.
• LED working light and digital screen for clear operation status.
• Strong aluminum heater plate (thickness up to 19mm) with optional Daikin Teflon coating.
• Aluminum moulded insulation cover and magnesium cooling fin for heat protection and efficient cooling.
• ABS + strong nylon handle construction.
• Stable U-type machine support and special table clamps for reliable mounting.
• Includes stainless steel spanner and screws.
• VDE copper wire with rubber cover; 3m cable length; supports worldwide plugs and includes plug cover protective.
• Steel carrying box available (1.0mm thickness) with support for OEM color paint and OEM logo engraving or sticker.
• Heating sockets, repair sockets and saddle sockets are provided.

Socket fusion instruction (process overview)

• 1. Fusion Preparation
• 2. Cutting the pipe
• 3. Clearing the pipe
• 4. Measure fusion depth
• 5. Heating
• 6. Connecting and cooling

Characteristics / technical specifications

• Model: ZTHJ-110A
• Rated Voltage: 110V / 220V
• Rated Frequency: 50Hz / 60Hz
• Rated Power: 1200W
• Working Temperature: 260°C
• Temperature Tolerance: ≤5°C
• Warning Temperature: 295°C
• Welding Size: 75-90-110 mm
• Suitable Material: PP-R / PE / PB
• Net Weight: 2.0 kgs
• Pieces per Carton: 2 pcs
• Gross Weight: 20.8 kgs
• Dimensions (mm): 460 × 270 × 270
• Warranty: 2 years
