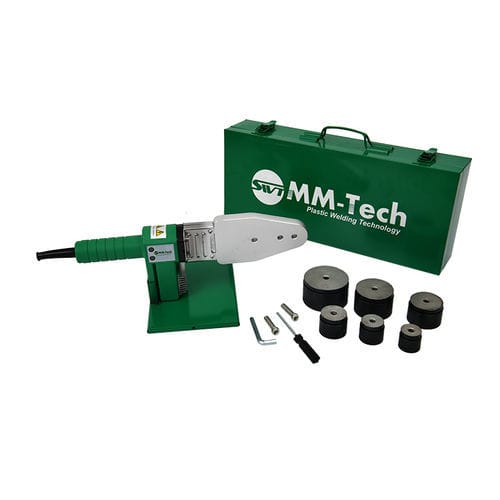

Polymer electric fusion machine THJ-63E

for industrial applicationsresistance

The THJ-63E is a portable socket fusion welder for joining PPR, PE and PB pipes, intended for plumbing and hot/cold water supply installations. MM-Tech provides a 2-year quality warranty and supplies free spare parts to support maintenance.

Key advantages

• Portable socket fusion welder suitable for on-site plumbing work.
• Square base for improved stability during welding operations.
• Aluminum heating plate (up to 19 mm thickness) with optional Teflon surface for easier cleaning.
• Lightweight design with ABS + nylon handle, LED work light and digital display.

Usage / Socket fusion steps

• 1. Fusion preparation
• 2. Cut the pipe
• 3. Clean the pipe ends
• 4. Measure fusion depth
• 5. Heat components
• 6. Connect and allow to cool

Product features

• Strong aluminum heater plate; Teflon option; internal heating element available in 110V or 220V.
• ABS + reinforced nylon handle, LED working light and digital screen; aluminum molded insulation cover; magnesium cooling fins.
• Stable U-type machine support with special table clamps; stainless steel spanner and screw included.
• VDE copper wire with rubber-covered cable (up to 3 m); supports international plugs and protective plug cover.
• Aluminum heating sockets compatible with DVS and ASTM standards; includes heating sockets, repair sockets and saddle sockets.
• Steel carrying case (1.0 mm) with options for OEM color paint, engraved or sticker logo.

Technical specifications

• Model: THJ-63E
• Pipe size (mm): 20 / 25 / 32
• Rated voltage: A.C. 220V
• Frequency: 50/60 Hz
• Power: 800 W
• Working temperature: 260℃ ±3%
• Ambient temperature: -5 ~ 45℃
• Applicable material: PP-R, PE, PB
• Net weight: 1.6 kg
• Pcs/Carton: 10
• Carton size (mm): 450 x 400 x 500
• Weight/Carton: 39 kg

Packaging & accessories

• Delivered in a steel case (1.0 mm) with foam support for safe transport.
• Includes heating sockets, repair sockets, saddle sockets, stainless steel wrench and screw, and table clamps.

Warranty & services

• 2-year quality warranty.
• Free spare parts provided as indicated in the product offer.
