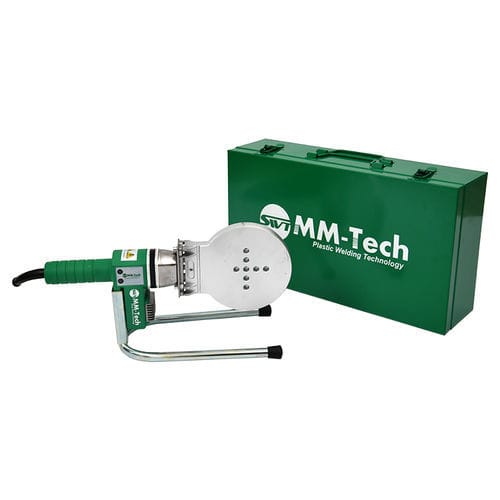

Polymer electric fusion machine RJQ-110

for industrial applications

The RJQ-110 is a socket-fusion welding machine designed to join PP-R, PE and PB pipes in plumbing and hot/cold water supply systems. It integrates Teflon-coated die heads, a high-temperature heating plate and ergonomic handling for consistent socket-fusion welds.

Key features

• Teflon (Daikin) coated heating elements and die heads to reduce sticking and simplify cleaning
• Design compliant with DVS2208-1 socket fusion standard
• Ergonomic nylon-rubber handle and ABS + nylon construction for comfortable handling
• Special U-type iron/table clamp for stable and secure mounting
• Strong aluminum heater plate (up to 19 mm thickness); optional Teflon surface
• LED work light and digital display for process monitoring
• Aluminum molded insulation cover and magnesium cooling fins for thermal management
• Includes stainless-steel spanner and screws; heating, repair and saddle sockets supplied
• VDE copper wire with rubber-covered cable (3 m); worldwide plug options and protective plug cover
• Steel carrying case (1.0 mm); OEM color and logo customization supported
• Customization available (color, model, logo); 2-year quality warranty; CE certificate

Applications

• Professional plumbing installations
• Hot water distribution
• Cold water distribution

Fusion instructions (summary)

• 1. Prepare the work area and equipment.
• 2. Cut the pipe to required length.
• 3. Deburr and clean pipe ends before welding.
• 4. Measure insertion depth for socket fusion.
• 5. Heat fittings and pipe ends with the die head to working temperature.
• 6. Join parts and allow to cool following recommended procedure.

Technical specifications

• Model: RJQ-110
• Rated voltage: 110V / 220V (option)
• Rated frequency: 50Hz / 60Hz
• Rated power: 1200 W
• Working temperature: 260 °C
• Temperature tolerance: ≤ 5 °C
• Warning temperature: 295 °C
• Welding sizes supported: 75 mm, 90 mm, 110 mm
• Suitable materials: PP-R, PE, PB
• Net weight: 2.0 kg
• Pieces per carton: 2 pcs
• Gross weight (carton): 22.8 kg
• Packaging dimensions (mm): 460 × 270 × 270
