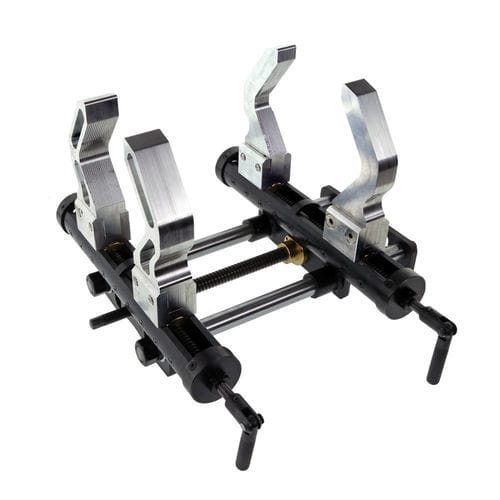

Manual positioner SSJ series

linear1-axishead and tailstock

The SSJ series suspending tool is a versatile jig for socket fusion welding of PPR, PVDF and PE pipes, providing a stable, adjustable platform to suspend and position socket fusion welding machines for accurate, repeatable welds. The range covers SSJ125 and SSJ160 models with overall coverage from 20 to 160 mm and includes a 2-year quality warranty.

Key benefits

• Provides a stable platform for socket fusion welding operations
• Customizable and adaptable to different welding tasks and working environments
• Designed for safe and reliable suspending and positioning of socket fusion welders

Applications

• Socket fusion welding machines and jigs
• Plumbers and installation professionals
• Hot and cold water supply systems
• Installation and maintenance of PPR/PVDF/PE pipe networks

Specifications / technical data

• Warranty: 2-year quality warranty
• Applicable materials: PPR, PVDF, PE pipes
• Connection type: socket fusion
• Models and technical data:
  • SSJ125 — Fix range: 20-125 mm; Weight: 16 kg; Measure (L×W×H): 43 × 41 × 58 cm
  • SSJ160 — Fix range: 50-160 mm; Weight: 18.2 kg; Measure (L×W×H): 61 × 43 × 20 cm
